Electrical Diagrams

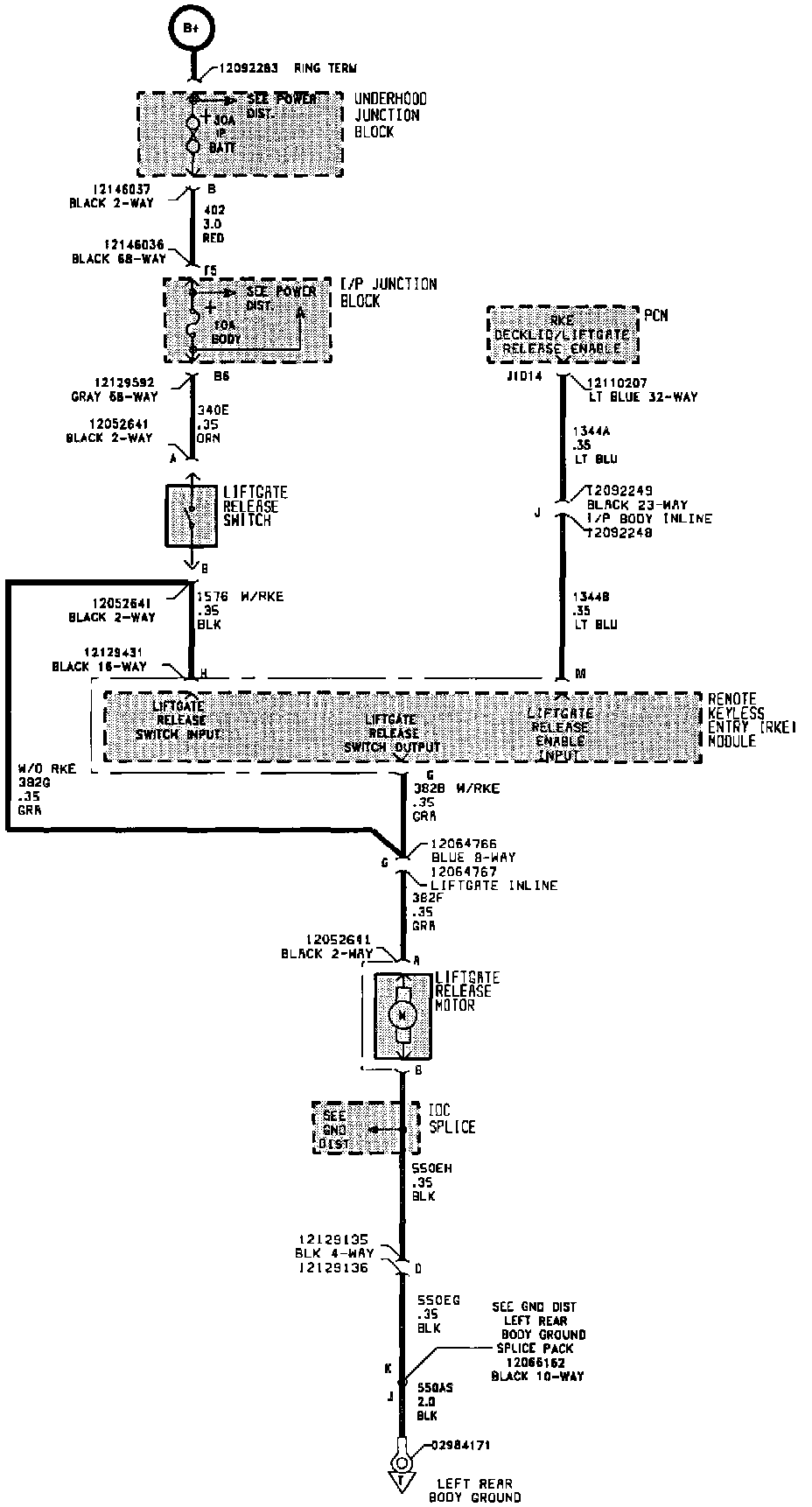

Decklid/Liftgate Release (SL And SC With RKE Only, SW All):

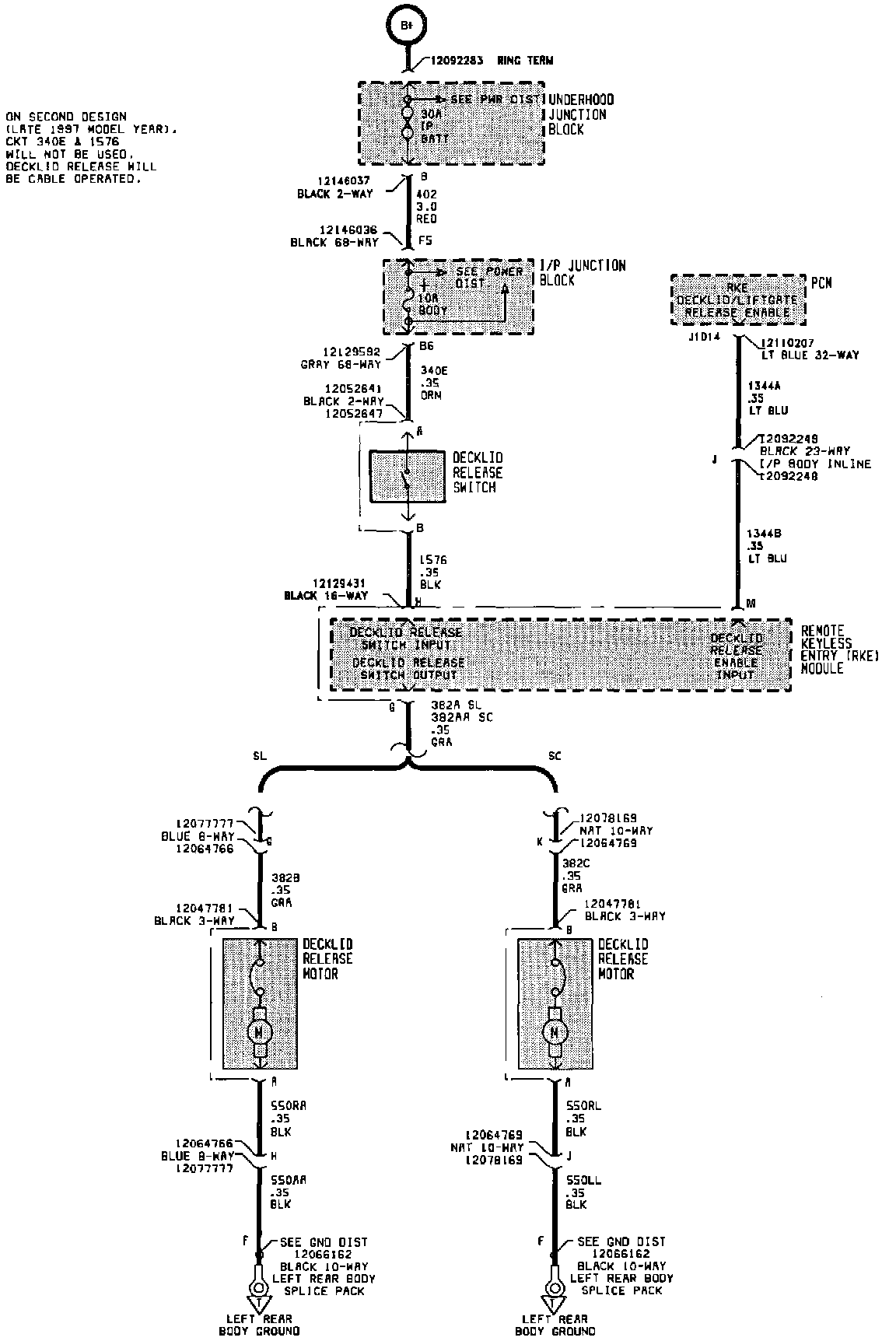

Decklid/Liftgate Release:
