Glass Alignment - Front Door

GLASS ALIGNMENT - FRONT DOOR

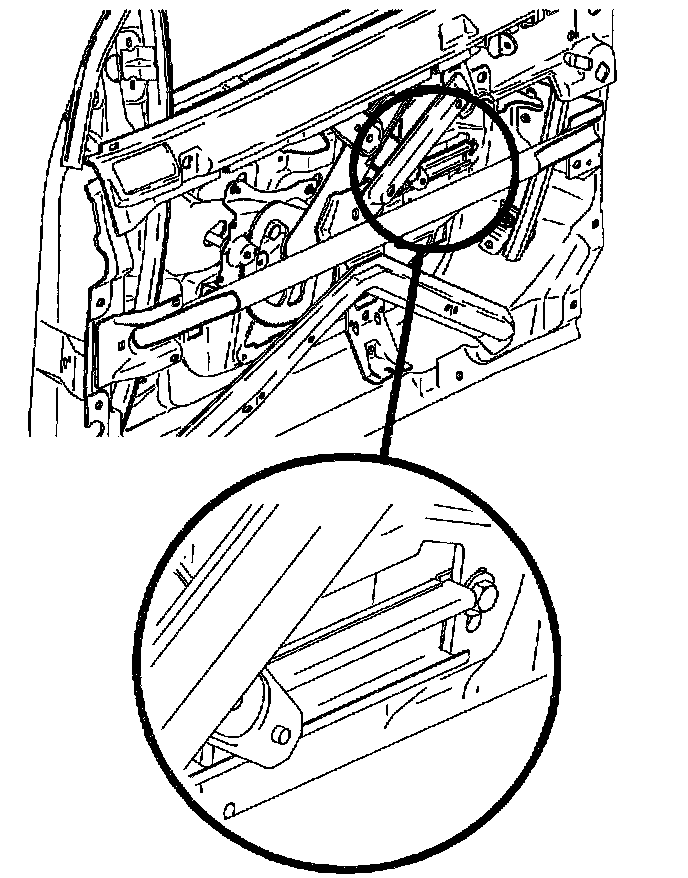

1. For window fore aft adjustment, lower window to 3/4 down position. Push rearward to seat in rear window guide. Bring pressure against rear window guide and torque guide bolt.

Torque: 10 Nm (89 in-lbs)

2. Check for proper operation.
3. Adjust window regulator rear bolt, as required.

Torque: 10 Nm (89 in-lbs)
