Front Door Glass Replacement

FRONT DOOR GLASS - SEDAN / WAGON






REMOVAL
1. Remove door inner trim panel.
2. Partially remove water liner.
3. Lower door glass for access to sash slide clips.

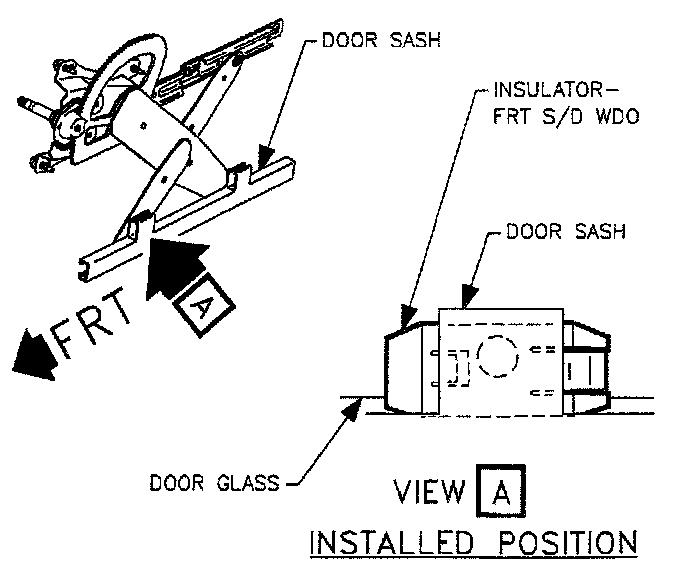

4. Depress retaining clips and slide sash from glass.

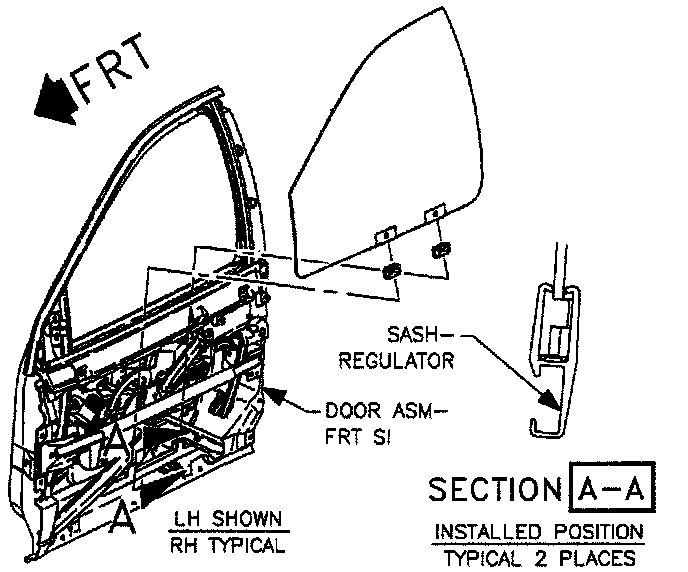

5. Rotate glass, push up, then remove from door.






INSTALLATION
1. Install door glass into door and align sash with slide clips.
2. Slide sash onto clips, then check door glass operation and alignment.
3. Install water liner.
4. Install inner trim panel.
