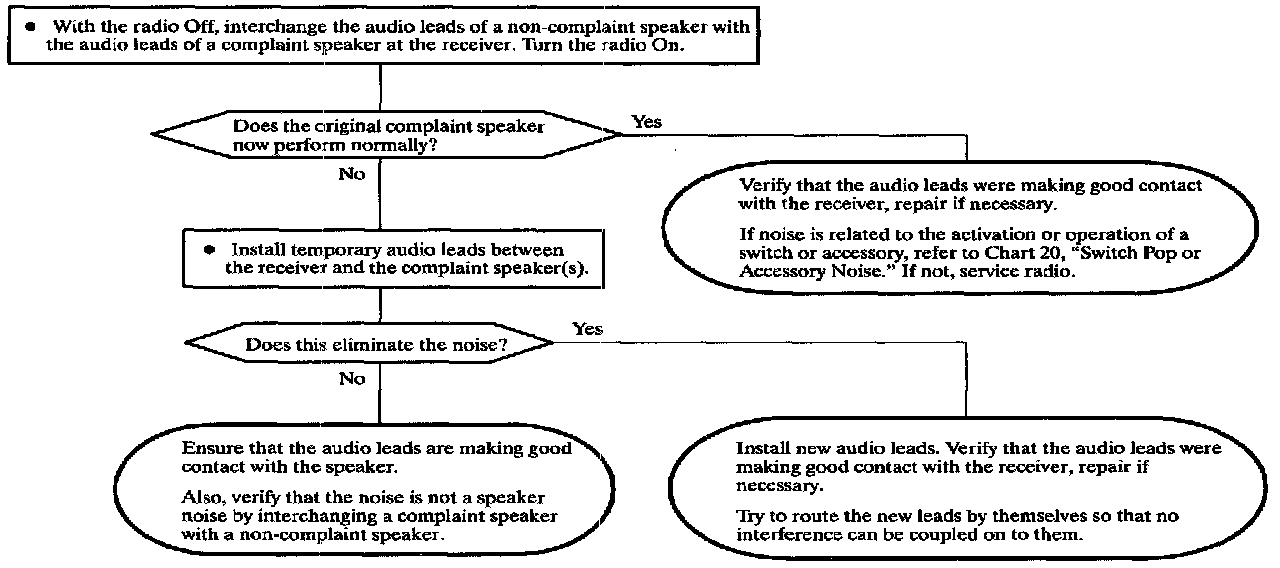

Chart 18: Speaker Harness Related Noise

Chart 18 Speaker Harness Related Noise:

HARNESS RELATED NOISE
Noises induced into speaker wires or any low level audio signal wire used as an interconnect between the various audio components.

Some Causes:
^ Broken, pinched or shorted audio wires.
^ Screw through wire harness.
^ Faulty shield wires.

Solutions:
^ Localize problem to left, right side, front or back speaker location. Preferably done by using the fade and balance controls; if not, try reversing the speaker leads at the radio connector.
^ Check wiring for defects, breaks, pinches or shorts.
^ Check wiring near known noisy components.
