LEMON Manuals: Even more car manuals for everyone
Home >> Saturn >> 1997 >> SL L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Charts >> Chart 16: Ignition Noise

Chart 16: Ignition Noise

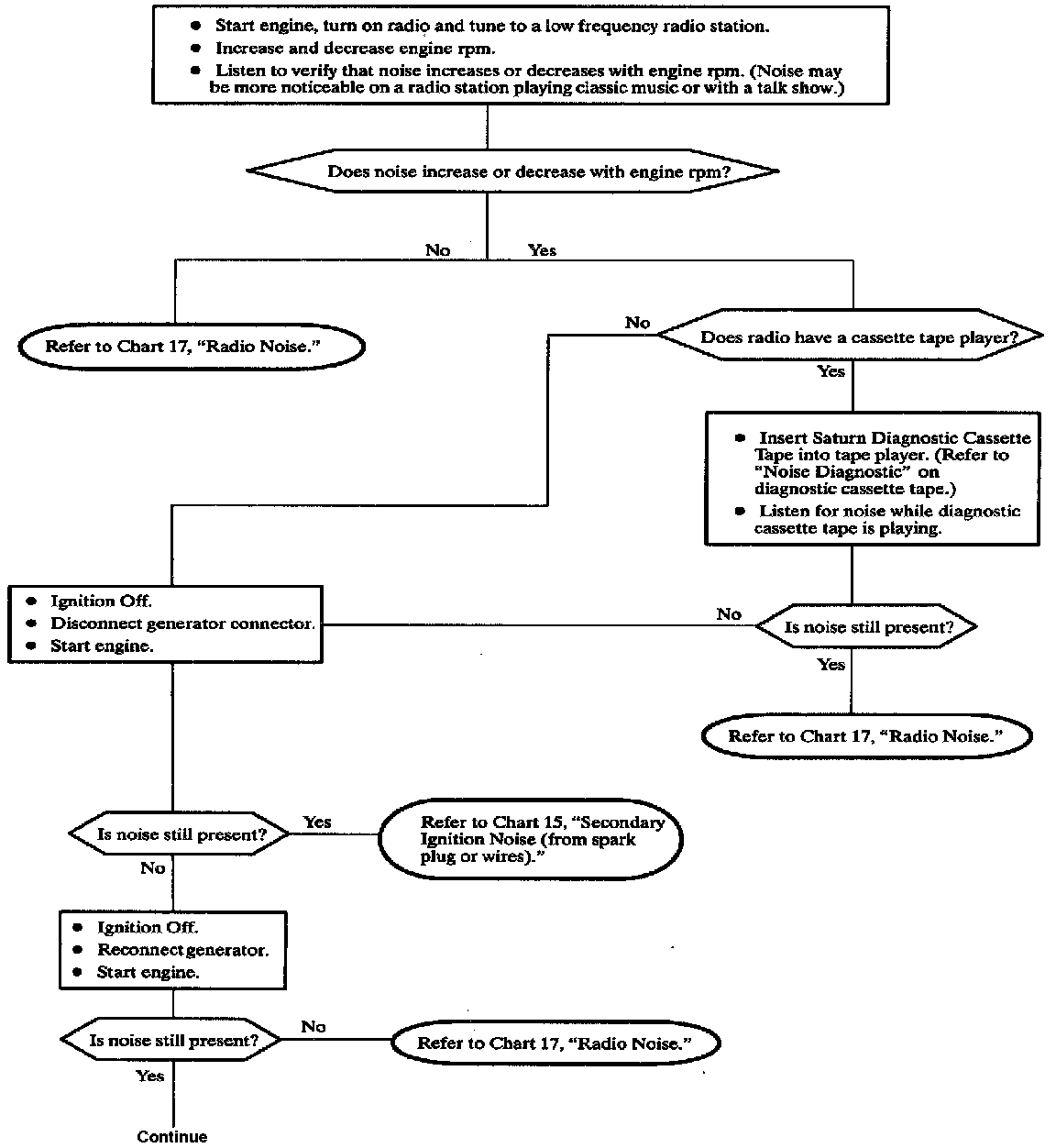

Chart 16 Ignition Noise (Part 1 Of 2):

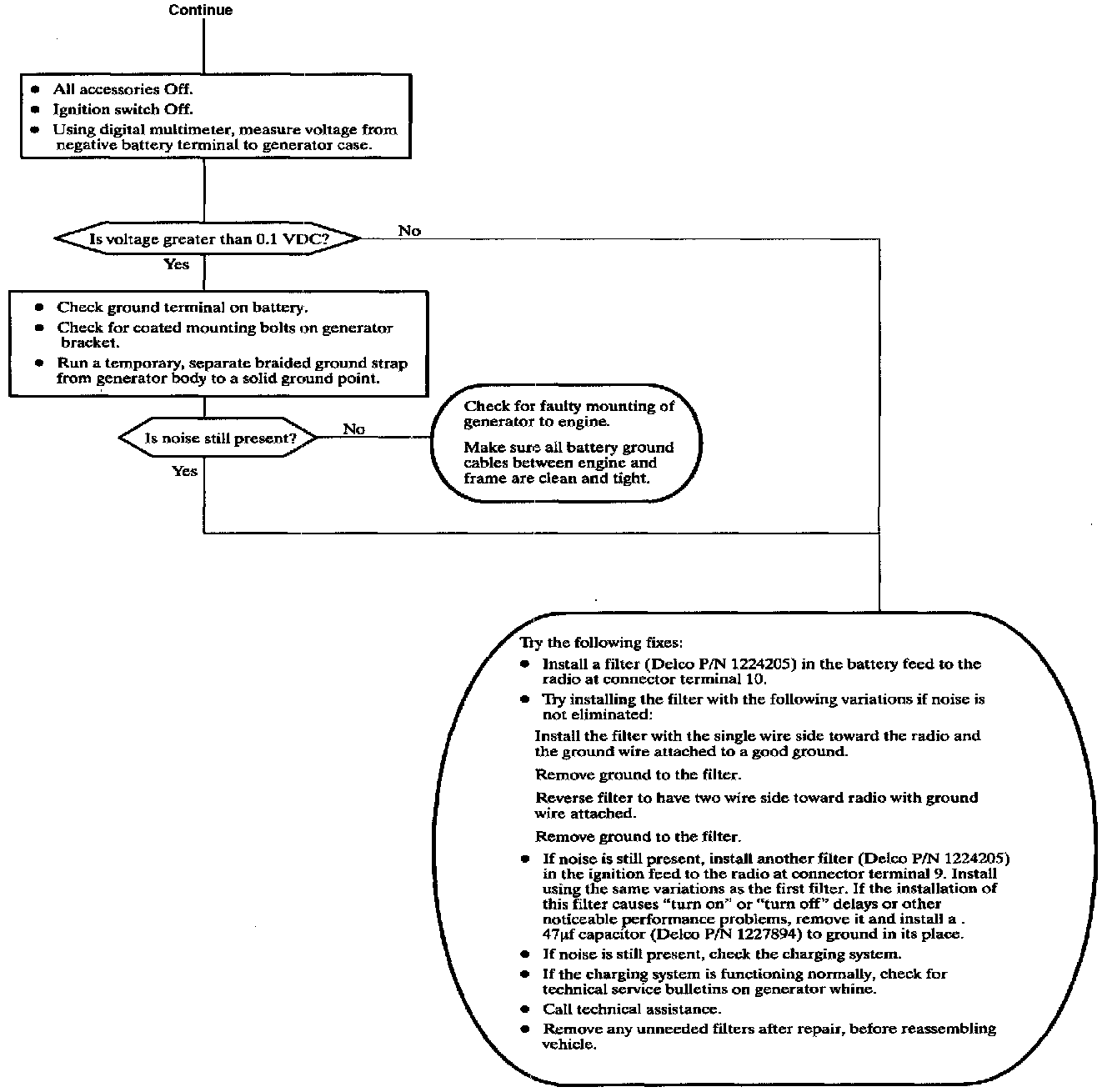

Chart 16 Ignition Noise (Part 2 Of 2):
