Removal

Radio Removal:

1. Depress center pins inward to release radio/HVAC controller cover push pin fasteners.

Important: Do not push center pins through fasteners.

2. Remove fasteners and pull radio/HVAC controller cover rearward.
3. Disconnect traction control/fog lamp/rear defog electrical connector if equipped.

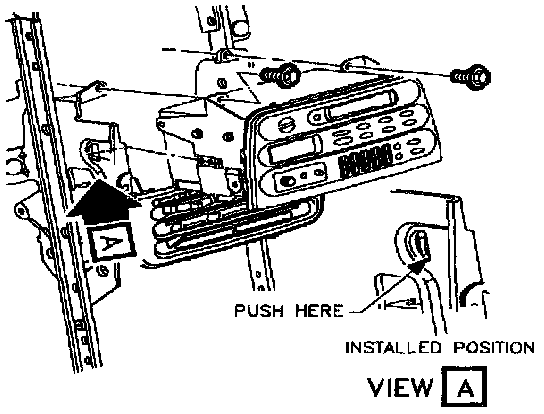

4. Remove radio screws.
5. Push spring clips in through D holes on both sides of radio brace.
6. Pull radio out slightly to access rear of radio.

Radio Removal:

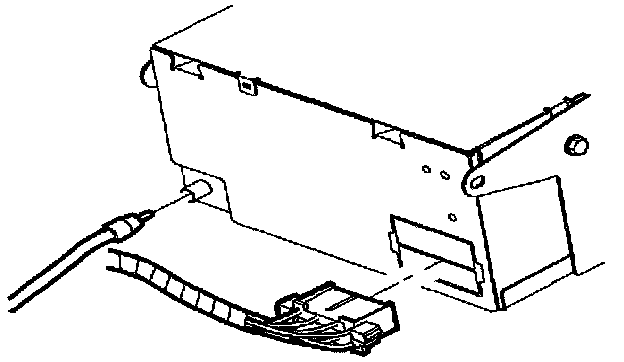

7. Disconnect electrical connector and antenna.
8. Remove radio.
