Installation

Radio Installation:

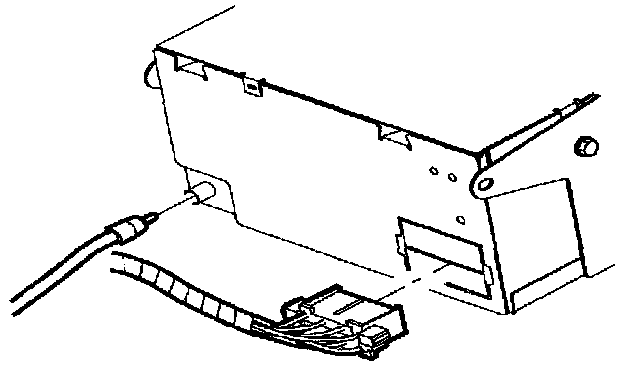

1. Connect electrical connector and antenna to radio.

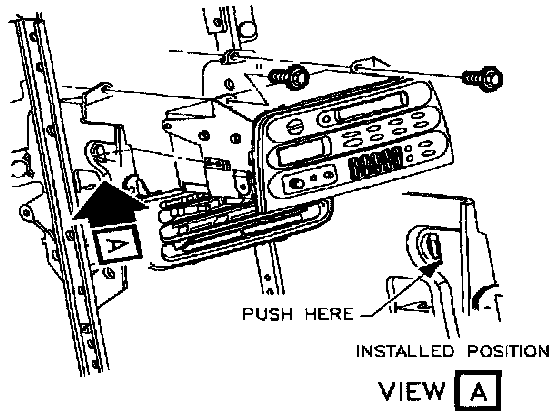

Radio Installation:

2. Install radio.

Important: Make sure spring clips are seated in D-holes on both sides.

3. Install and tighten screws.
Torque: 2.5 N-m (22 in-lbs)

Radio Installation:

4. Connect traction control/fog lamp/rear defog electrical connector, if equipped.

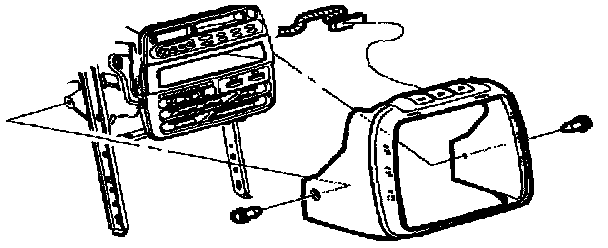

5. Install radio/HVAC control cover. Push in at clip locations.
6. Install push pins and lock.
