Home
>>
Saturn
>>
1997
>>
SL L4-1.9L SOHC VIN 8
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Radio/Stereo
>>
Diagrams
>>
Connector Views
Connector Views

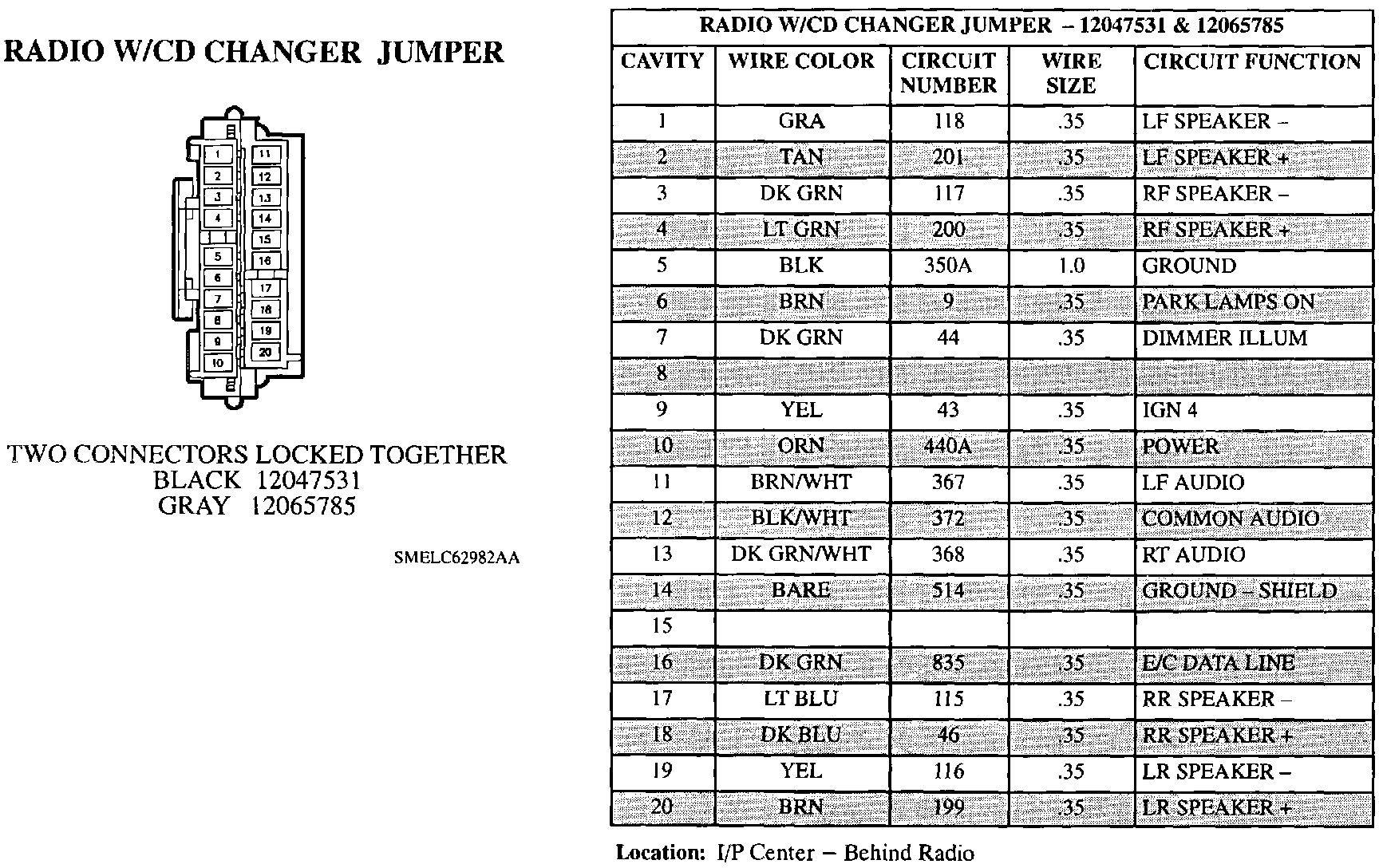

Radio W/CD Changer Jumper:

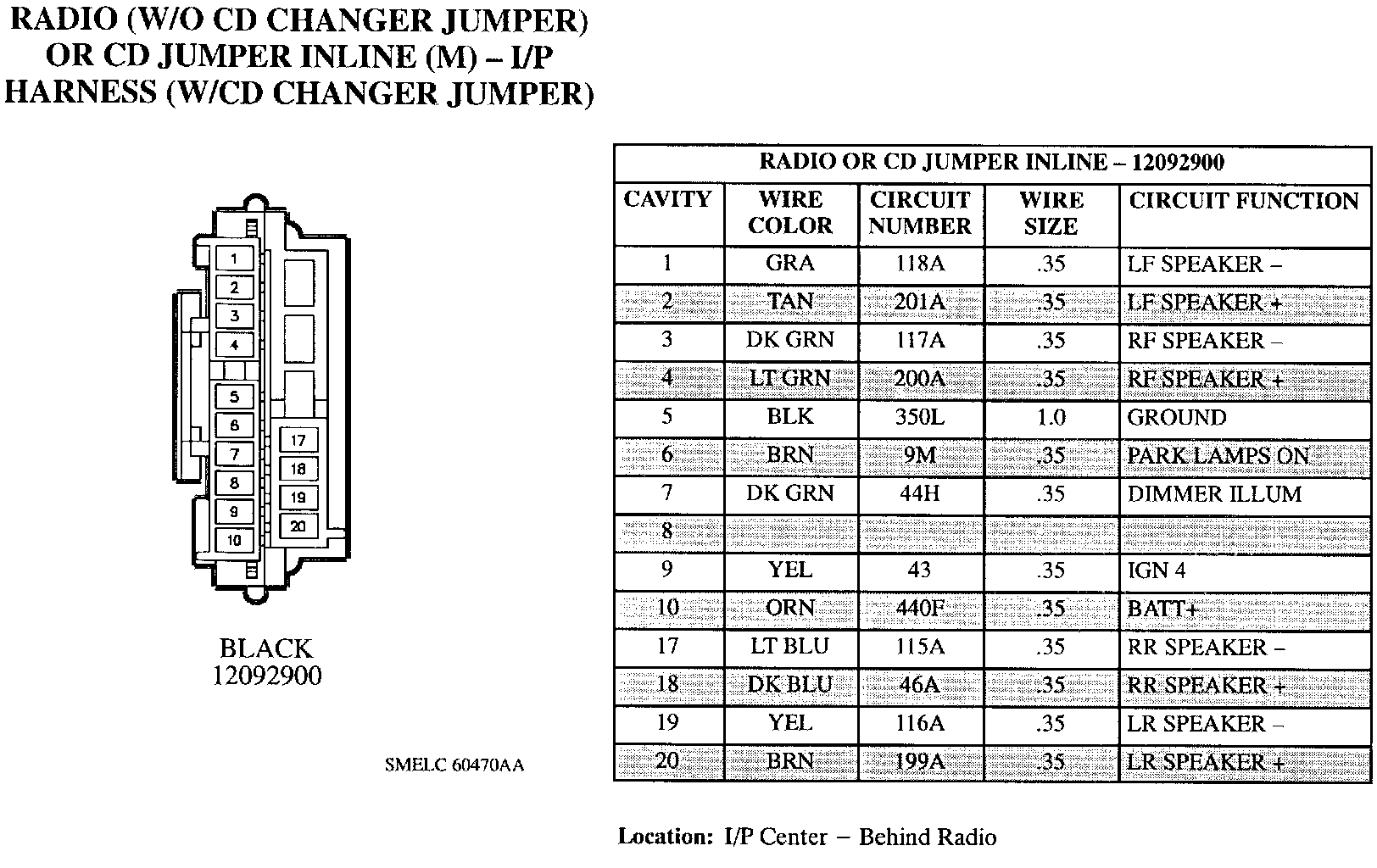

Radio (W/O CD Changer Jumper) Or CD Jumper Inline (M) - I/P Harness:
