Steering Column Filler Panel (Knee Bolster): Removal

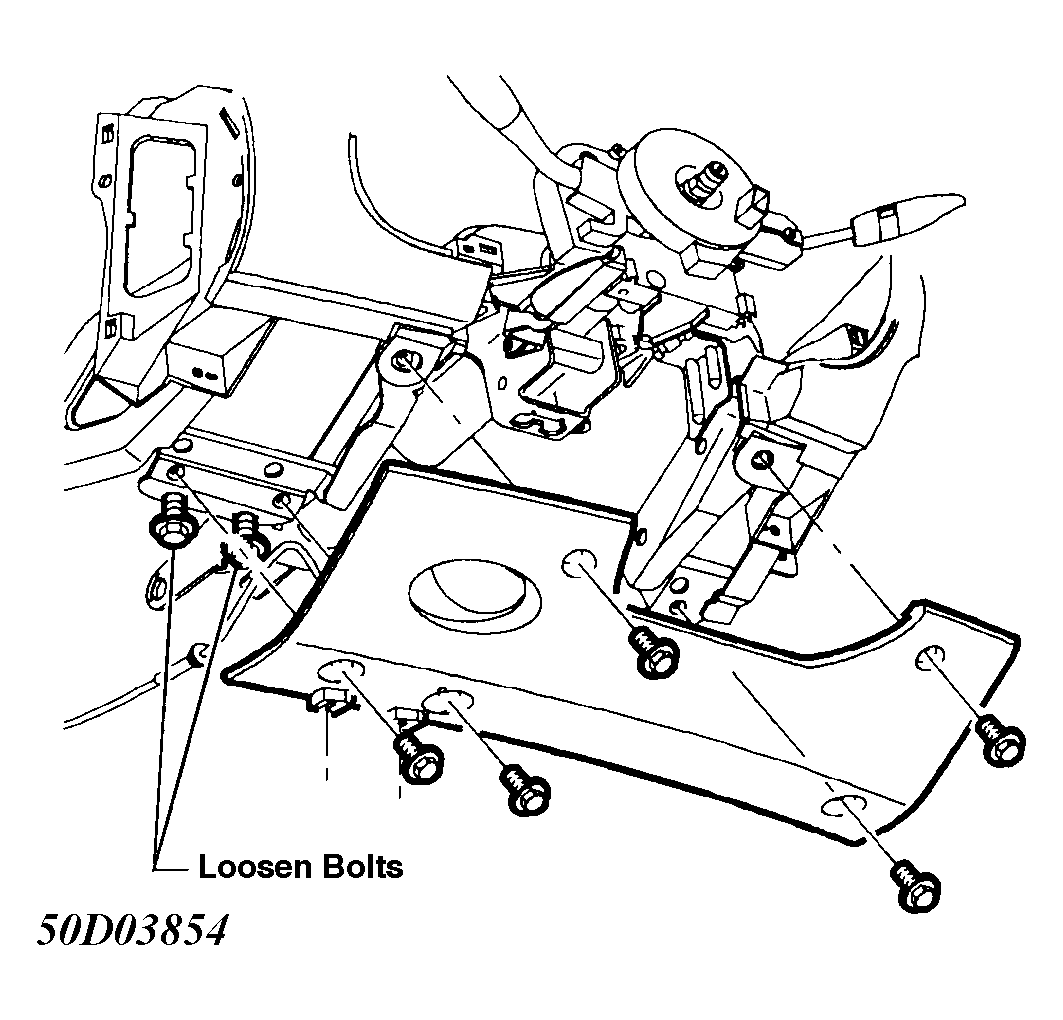

  1. Remove screws from data link connector and steering column filler panel. Disconnect cable from filler panel and pull hood release forward.
  2. Feed cable under hood release handle and slide pin out. Remove steering column filler panel. See Figure and Figure.
