Oil Pressure

Oil pressure should be 13 psi (.91 kg/cm(2)) at curb idle and 36 psi (2.5 kg/cm² ) at 2000 RPM.

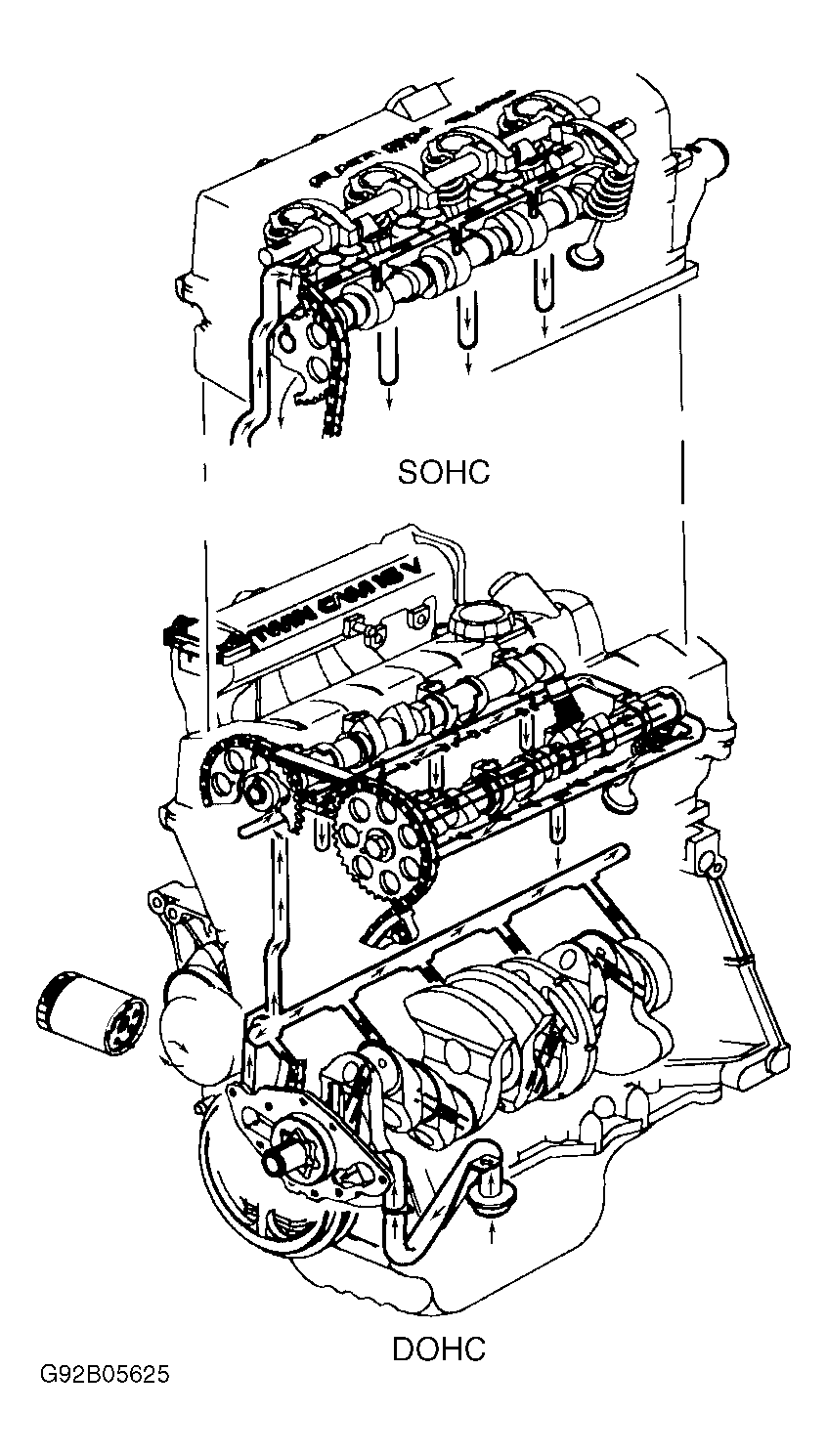

Fig 1: Cross-Sectional View Of Engine Oil Circuit

G92B05625

Courtesy of GENERAL MOTORS CORP.
