Removal (Rear)

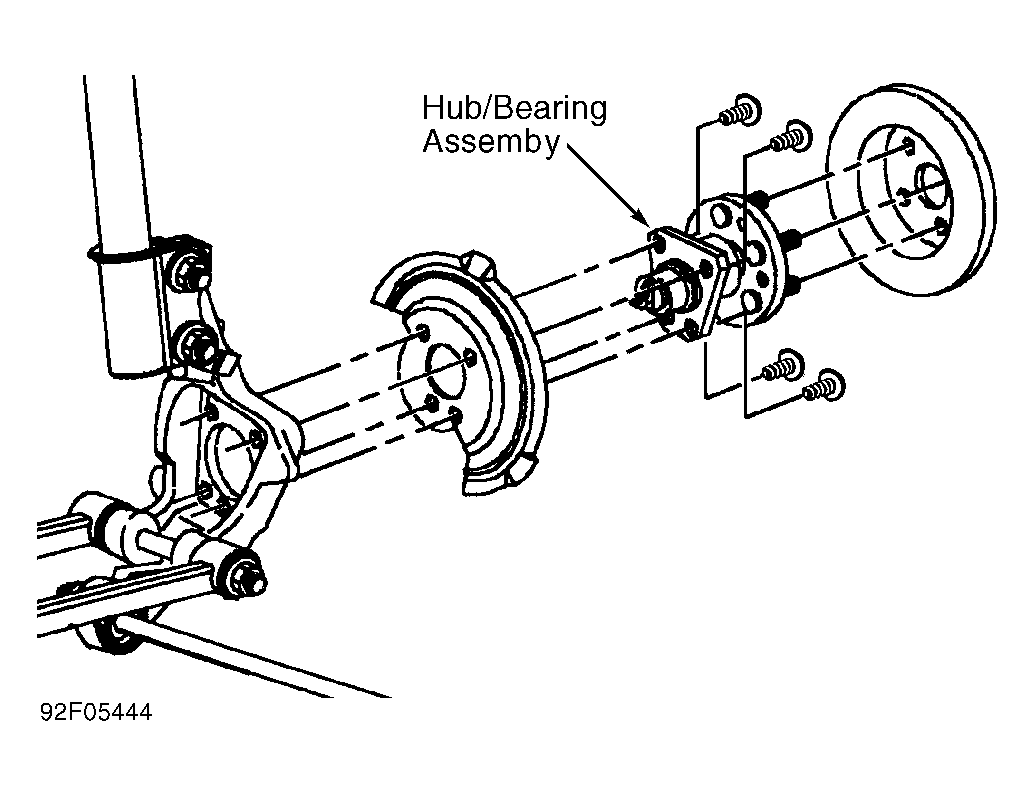

Sensor and hub are serviced as an assembly. Raise and support vehicle. Remove wheel. Unplug WSS connector. Remove caliper retaining bolts. Suspend caliper clear of knuckle. Remove hub retaining bolts. Remove hub. See Figure .
Sensor and hub are serviced as an assembly. Raise and support vehicle. Remove wheel. Unplug WSS connector. Remove caliper retaining bolts. Suspend caliper clear of knuckle. Remove hub retaining bolts. Remove hub. See Figure .
