Diagnostic Aids

  1. Suspected intermittents or opens at connectors can be detected with diagnostic service probe which permits voltage to be measured on wires without unplugging connectors. Ensure all terminals make good connection.
  2. When diagnosing intermittent problems, select MALF HISTORY from scan tool ABS menu. Supplemental data can be used to duplicate problem.
  3. Code 95 will set first and turn on ANTI-LOCK warning light. When brake pedal is pressed, Flag 96 will set.
  4. Brake switch is normally open. Depressing brake pedal closes switch and completes circuit.
Fig 1: Information Flag 96 Schematic
G95E15499Courtesy of GENERAL MOTORS CORP.

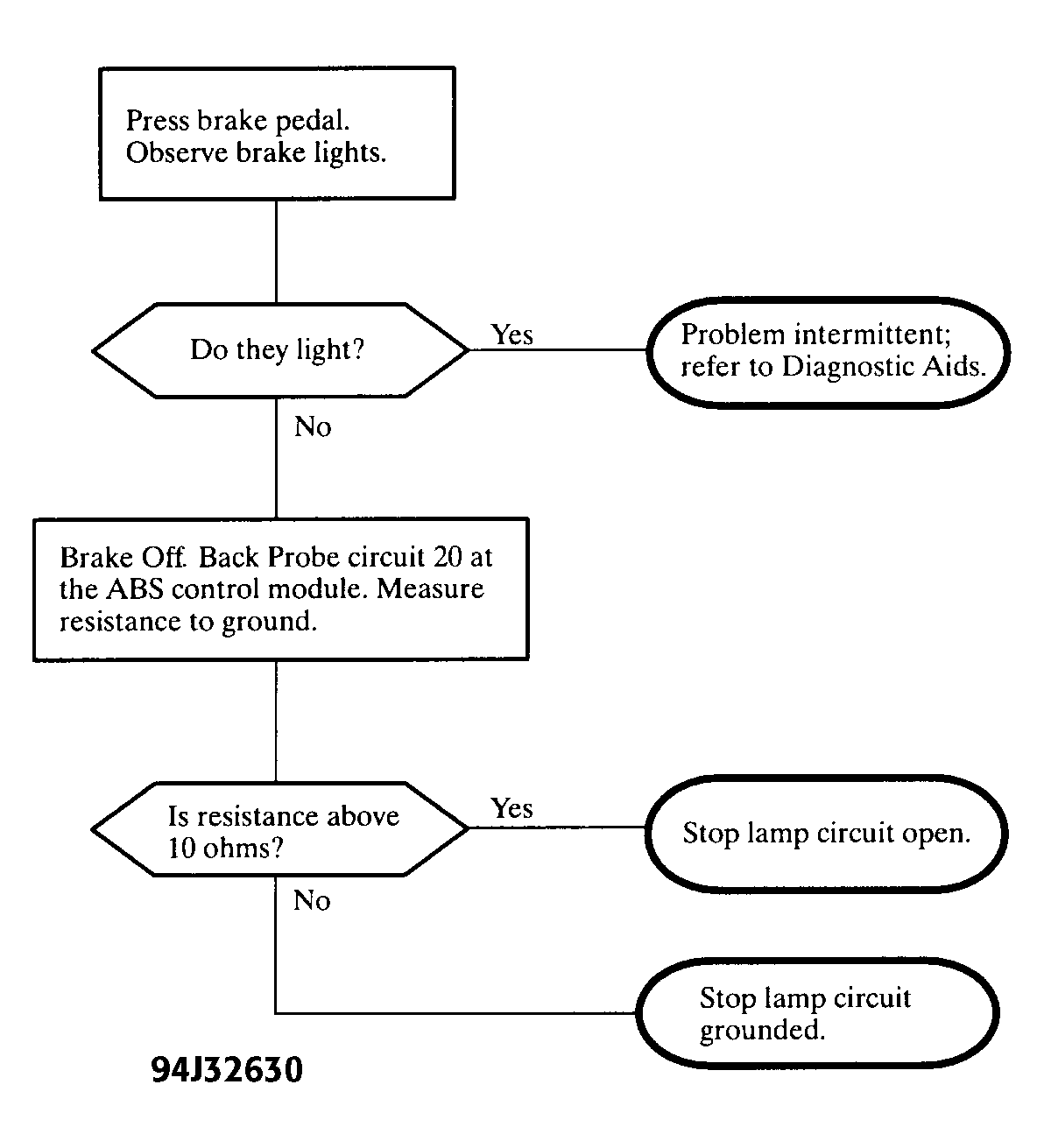

Fig 2: Information Flag 96 Flow Chart
G94J32630Courtesy of GENERAL MOTORS CORP.
