Heater and Air Conditioning Remote Control Replacement

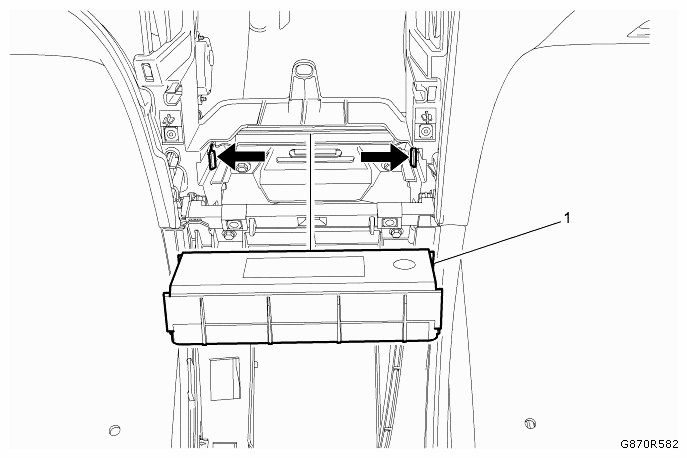

Fig 1: Locating Electrical Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the rear end trim finish panel replacement panel. Refer to RADIO REPLACEMENT .
1	Heater and Air Conditioning Remote Control Procedure Release the locking tabs and remove the heater and air condition remote control. Disconnect the electrical connector. For programming and set up information, refer to CONTROL MODULE REFERENCES .
