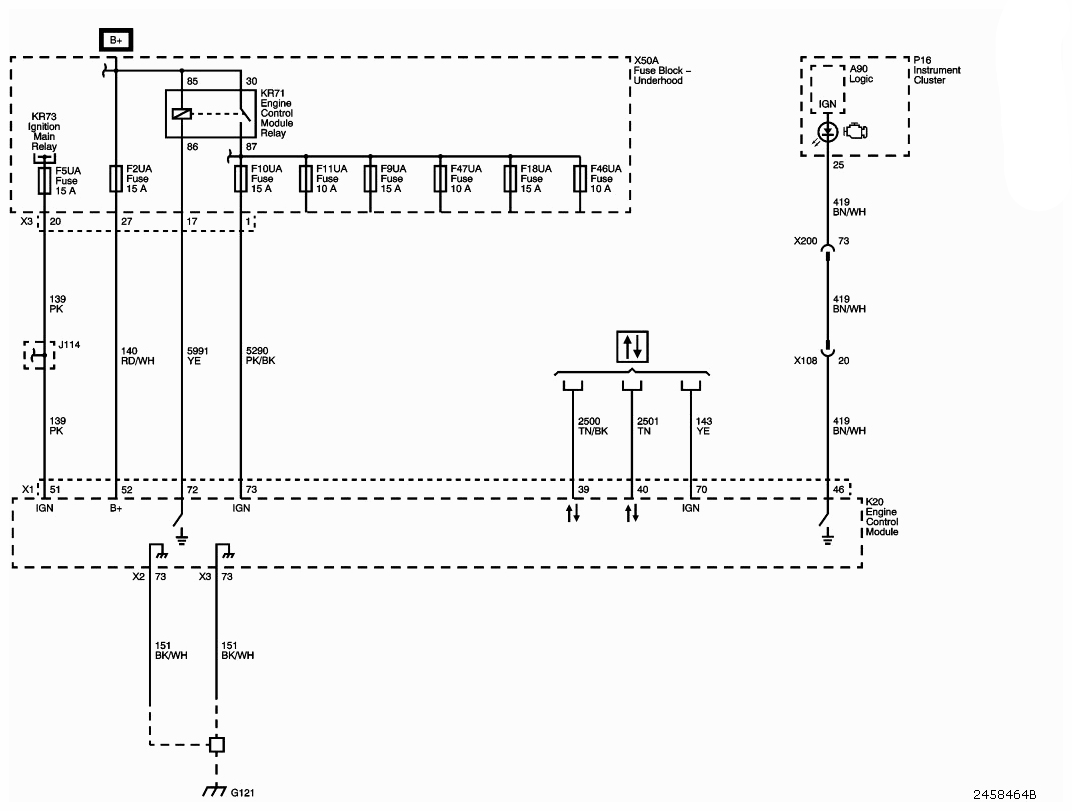

Module Power, Ground, Serial Data, and MIL
WARNING: This page is about a different variant/trim than selected.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
List of components
| No |
Name Location |
| |
Components |
| X50A |
Underhood Electrical Centre |
| KR71 |
Engine Control Unit Relay |
| KR73 |
Ignition Main Relay |
| P16 |
Instrument Panel |
| A90 |
Logic |
| K20 |
Control module, engine |
