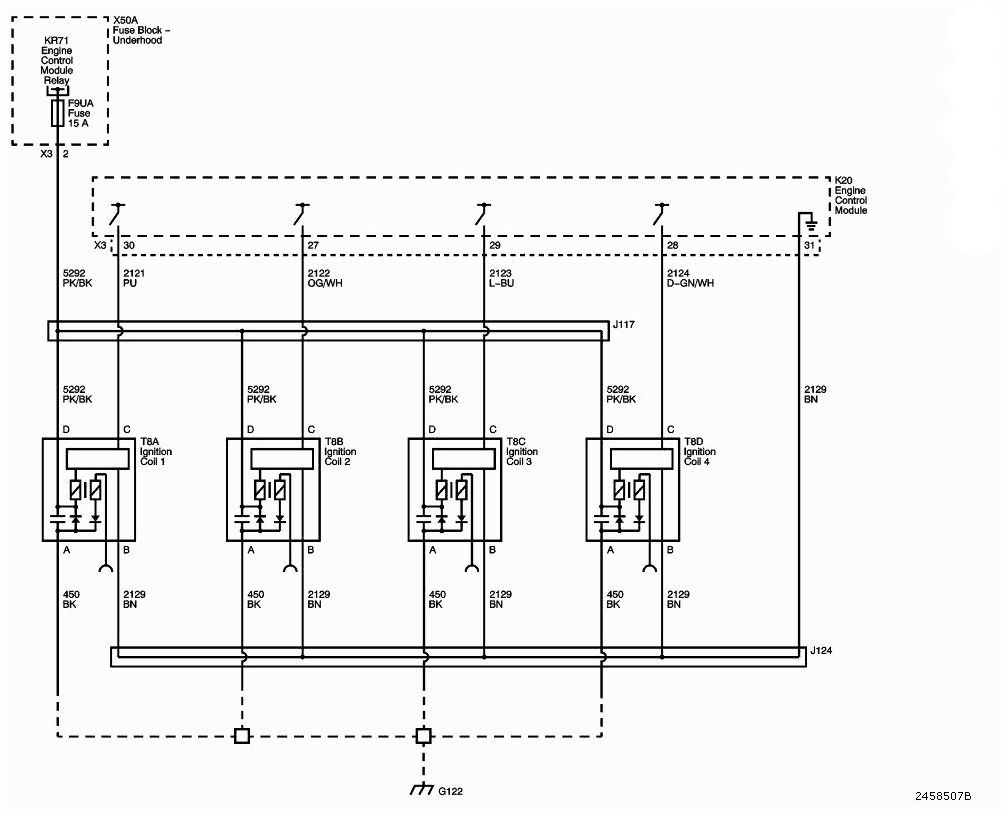

Ignition Controls - Ignition System Coils
WARNING: This page is about a different variant/trim than selected.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
List of components
| No |
Name Location |
| |
Components |
| X50A |
Underhood Electrical Centre |
| KR71 |
Engine Control Unit Relay |
| K20 |
Control module, engine |
| T8A |
Ignition Coil 1 |
| T8B |
Ignition Coil 2 |
| T8C |
Ignition Coil 3 |
| T8D |
Ignition Coil 4 |
