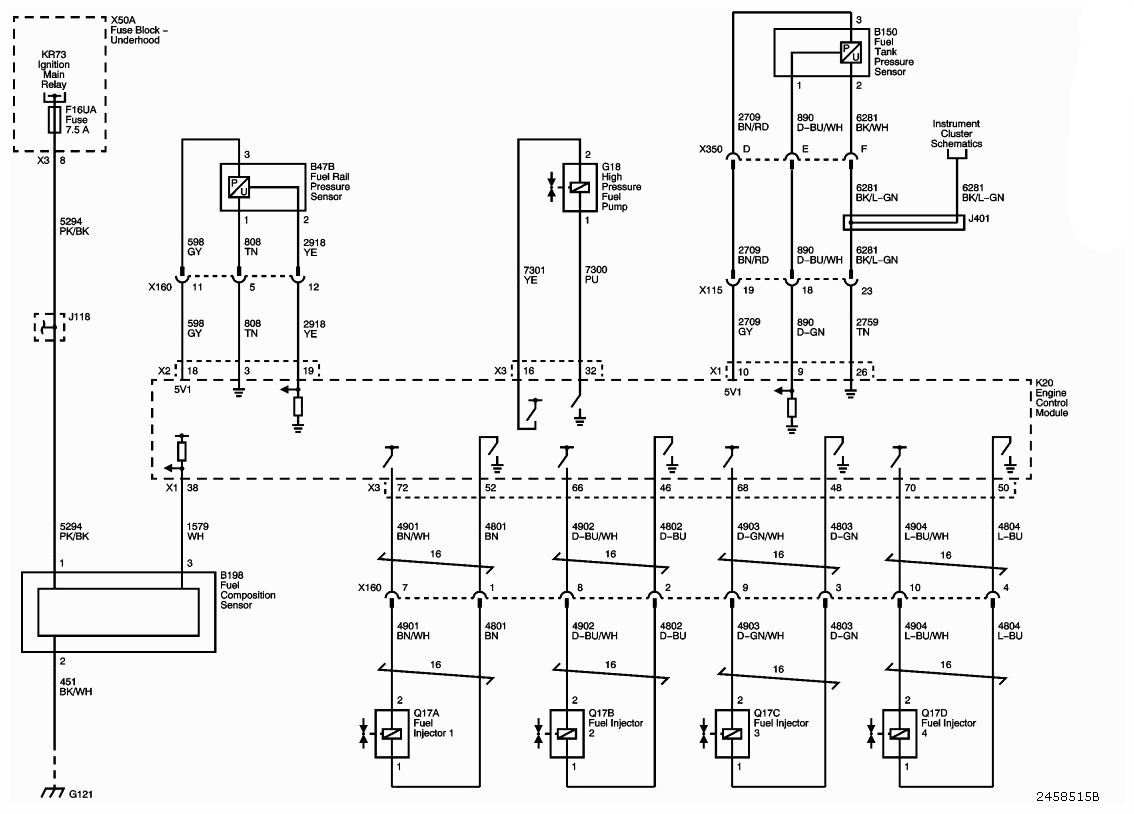

Fuel control - fuel injectors
WARNING: This page is about a different variant/trim than selected.
List of components
| No | Name Location |
|---|---|
| Components | |
| X50A | Underhood Electrical Centre |
| KR73 | Ignition Main Relay |
| B150 | Pressure sensor, fuel tank |
| B47B | Fuel Rail Pressure Sensor |
| G18 | High Pressure Fuel Pump |
| K20 | Control module, engine |
| B198 | Sensor, fuel mixture |
| Q17A | Fuel Injector 1 |
| Q17B | Fuel Injector 2 |
| Q17C | Fuel Injector 3 |
| Q17D | Fuel Injector 4 |
