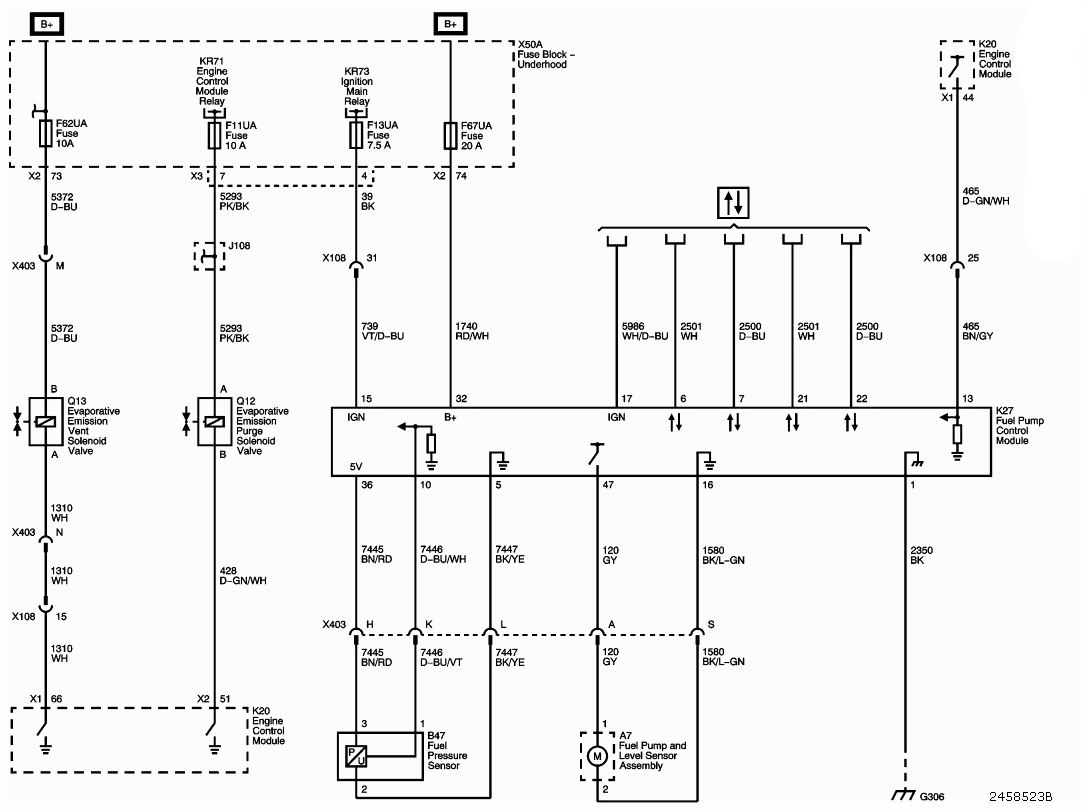

Fuel Controls - Fuel Pump and EVAP Controls
WARNING: This page is about a different variant/trim than selected.
List of components
| No | Name Location |
|---|---|
| Components | |
| X50A | Underhood Electrical Centre |
| KR71 | Engine Control Unit Relay |
| KR73 | Ignition Main Relay |
| K20 | Control module, engine |
| Q13 | Evaporative emission valve, solenoid valve |
| Q12 | Evaporative Emission System Solenoid Valve |
| K27 | Fuel Pump Control Module |
| B47 | Fuel Pressure Sensor |
| A7 | Fuel Pump Module |
