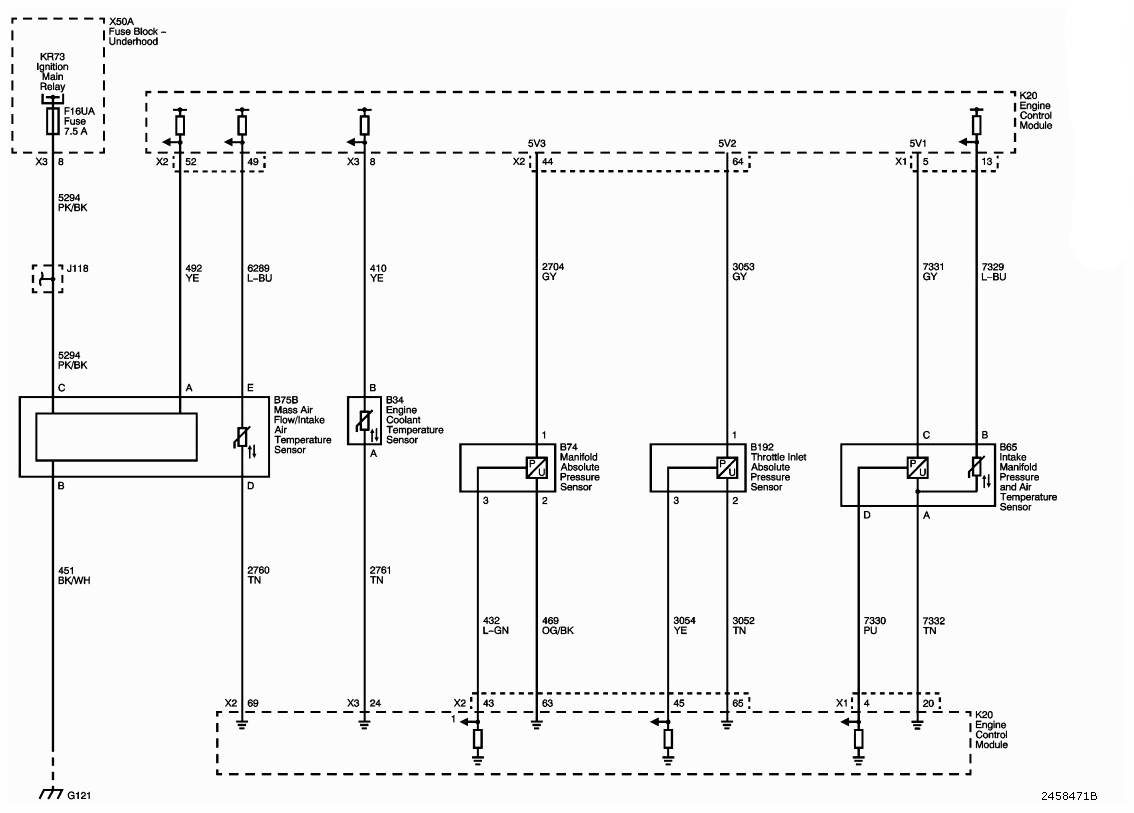

Engine data sensors - pressure and temperature
WARNING: This page is about a different variant/trim than selected.
List of components
| No | Name Location |
|---|---|
| Components | |
| X50A | Underhood Electrical Centre |
| KR73 | Ignition Main Relay |
| K20 | Control module, engine |
| B75B | Mass Air Flow/Intake Air Temperature Sensor |
| B34 | Coolant temperature sensor |
| B74 | Manifold Absolute Pressure Sensor |
| B192 | Sensor, absolute pressure throttle body in |
| B65 | Intake Manifold Pressure and Air Temperature Sensor |
