Controlled/Monitored Subsystem References

WARNING: This page is about a different variant/trim than selected.

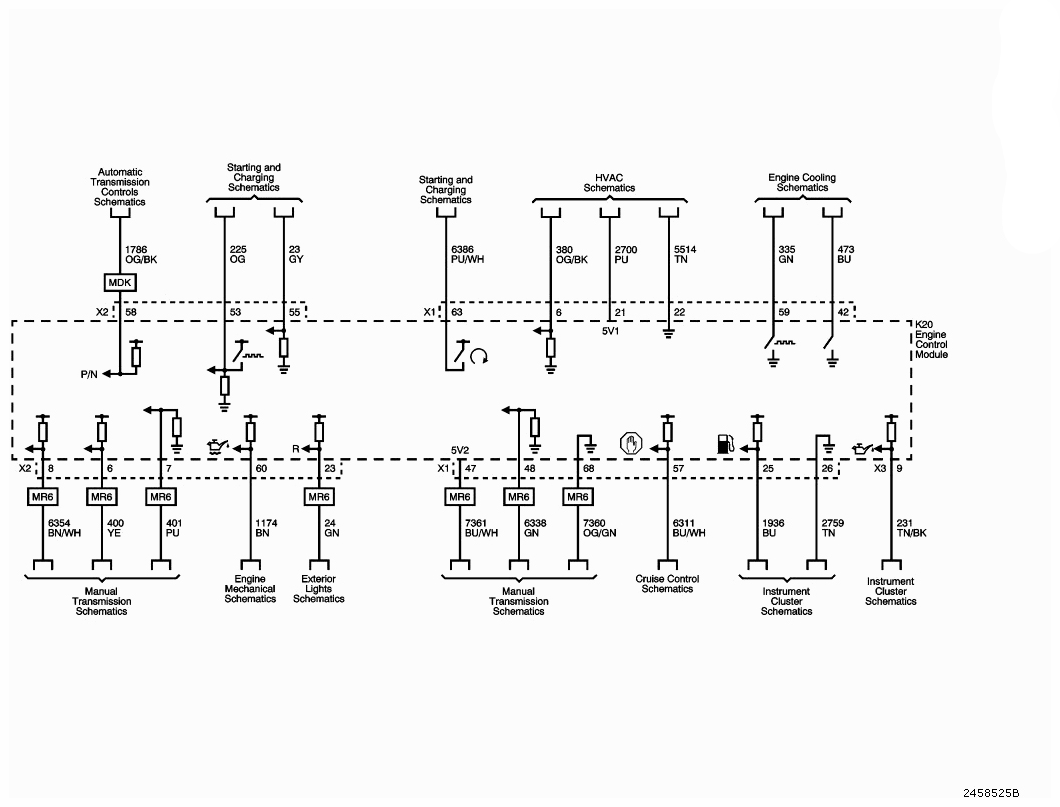

Fig 1: Controlled/Monitored Subsystem Schematics
G09407716Courtesy of SAAB-SCANIA OF AMERICA, INC.

List of components

No Name Location
  Components
K20 Control module, engine
