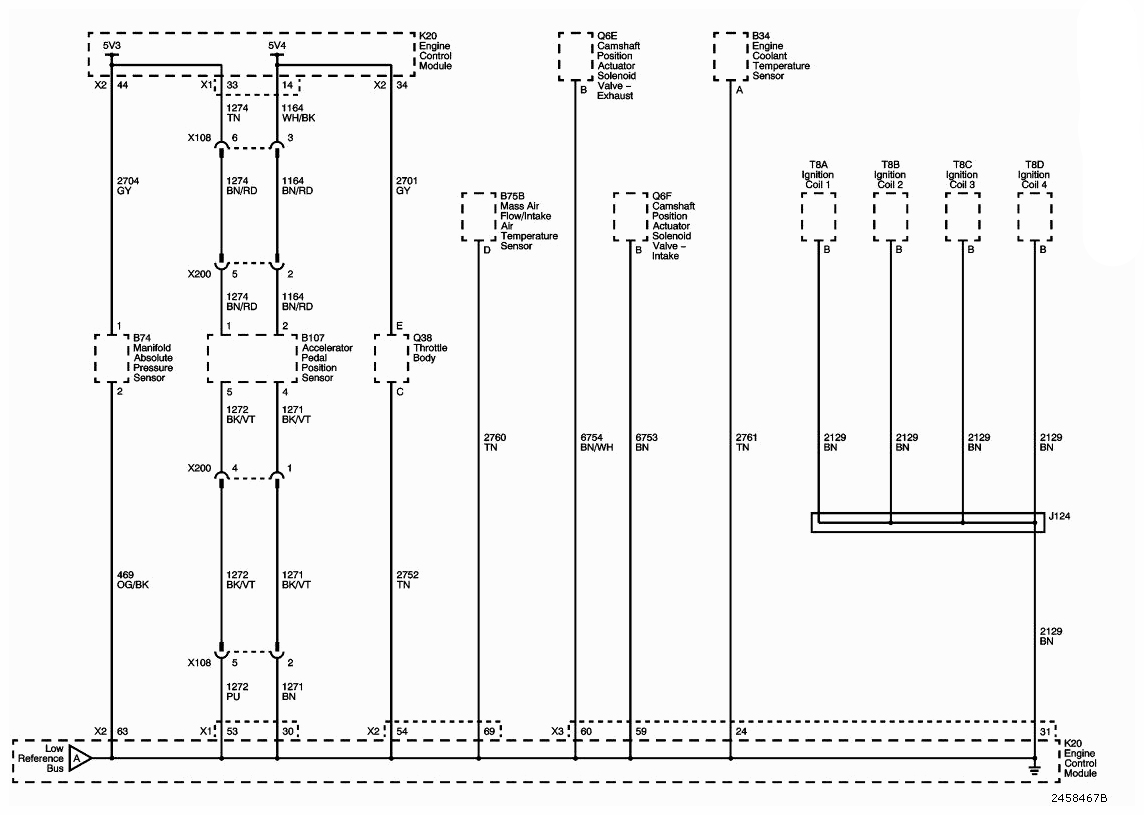

5-Volt Reference 3 and 4 as well as Low Reference Bus (2 of 2)
WARNING: This page is about a different variant/trim than selected.
List of components
| No | Name Location |
|---|---|
| Components | |
| K20 | Control module, engine |
| Q6E | Camshaft Position Actuator Solenoid Valve - Exhaust |
| B34 | Coolant temperature sensor |
| B75B | Mass Air Flow/Intake Air Temperature Sensor |
| Q6F | Camshaft Position Actuator Solenoid Valve - Intake |
| T8A | Ignition Coil 1 |
| T8B | Ignition Coil 2 |
| T8C | Ignition Coil 3 |
| T8D | Ignition Coil 4 |
| B74 | Mass Air Flow Sensor |
| B107 | Accelerator Pedal Position Sensor |
| Q38 | Throttle Body |
