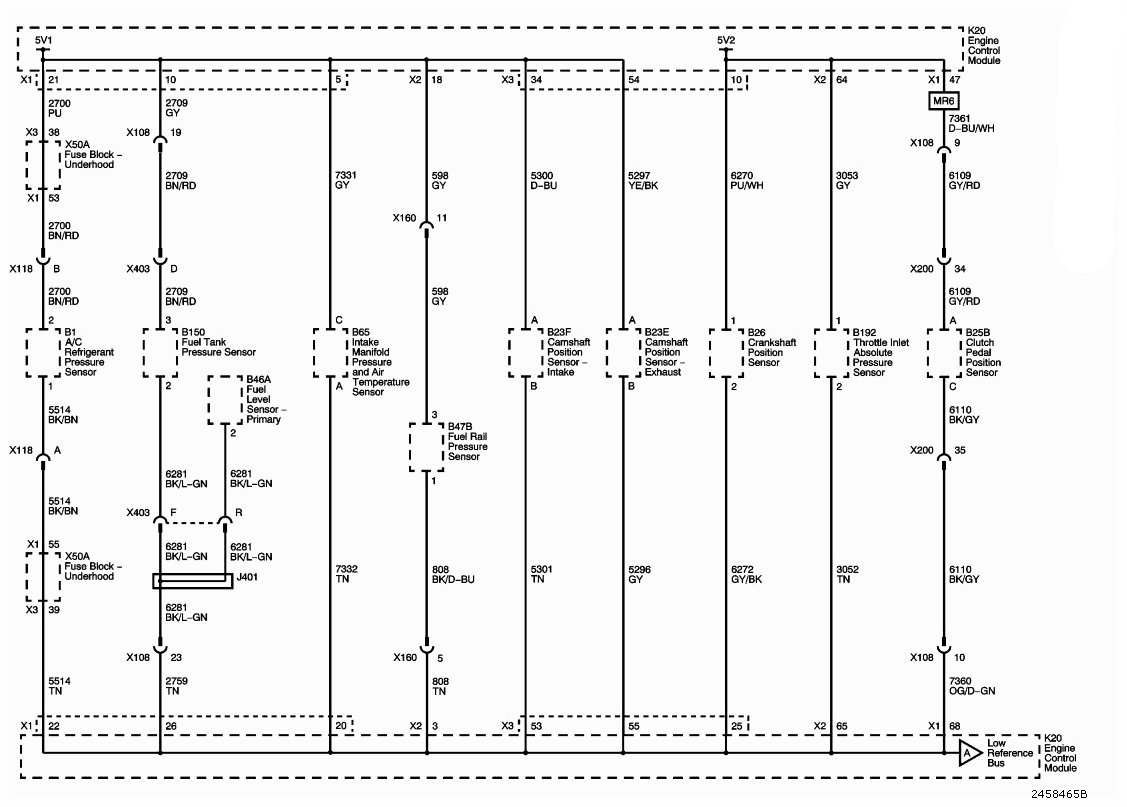

5-Volt Reference 1 and 2 as well as Low Reference Bus (1 of 2)
WARNING: This page is about a different variant/trim than selected.
List of components
| No | Name Location |
|---|---|
| Components | |
| K20 | Control module, engine |
| X50A | Underhood Electrical Centre |
| B1 | Sensor, refrigerant pressure A/C |
| B150 | Pressure sensor, fuel tank |
| B65 | Intake Manifold Pressure and Air Temperature Sensor |
| B23F | Intake Camshaft Position Sensor |
| B23E | Camshaft Position Sensor - Exhaust |
| B26 | Crankshaft Position Sensor |
| B192 | Pressure sensor, absolute pressure, throttle body in |
| B25B | Clutch Pedal Position Sensor |
| B46A | Level sensor, fuel - primary |
| B47B | Fuel Rail Pressure Sensor |
