Air Cleaner Outlet Duct Replacement

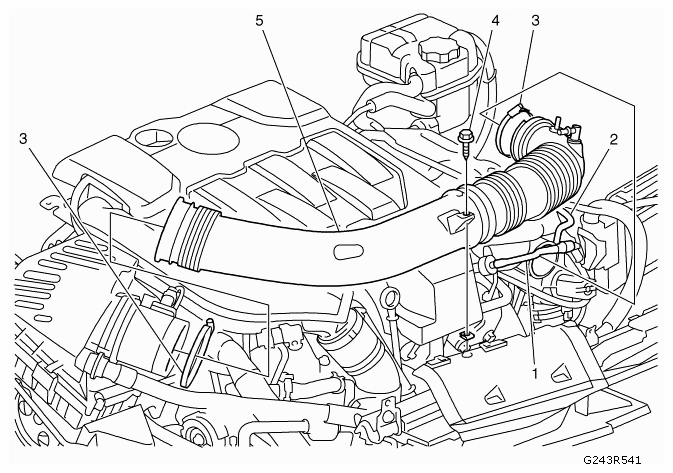

Fig 1: Identifying Air Cleaner Outlet Duct Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Positive Crankcase Ventilation Tube
2	Turbocharger Wastegate Regulator Solenoid Valve Hose
3	Air Cleaner Outlet Duct Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten 3, 5 Nm (31 lb in)
4	Air Cleaner Outlet Duct Fastener Tighten 3, 5 Nm (31 lb in)
5	Air Cleaner Outlet Duct
