Upper Engine Cover Removal

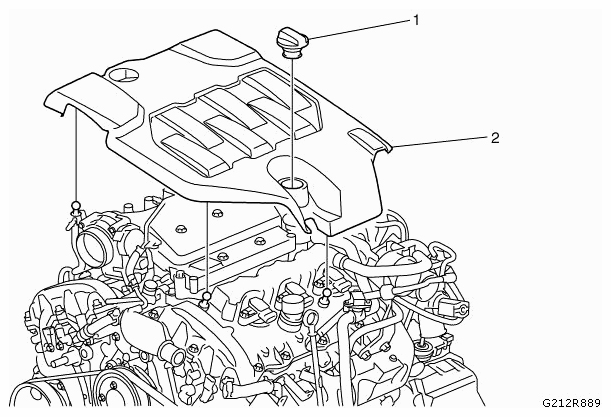

Fig 1: Identifying Upper Engine Cover And Oil Filler Cap

G09438362

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Oil Filler Cap
2	Upper Engine Cover
