Rear Electrical Center or Junction Block Replacement

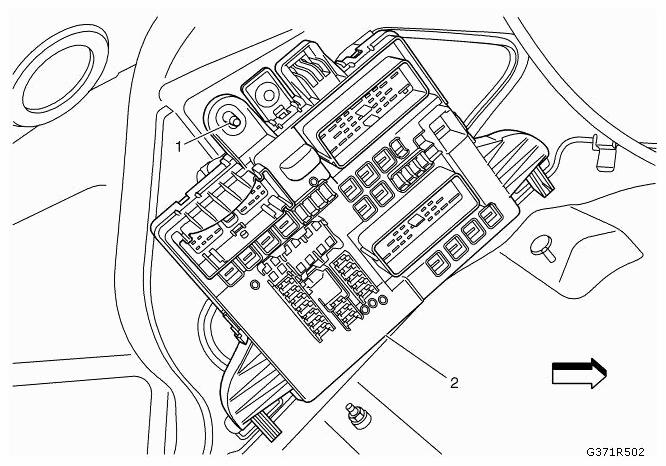

Fig 1: Identifying Rear Electrical Center

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Disconnect the battery ground negative cable. Refer to BATTERY NEGATIVE CABLE REPLACEMENT (GASOLINE) .
1	Rear Electrical Center Fastener Refer to FASTENER CAUTION . Procedure  Unscrew the rear electrical center fastener. Tighten  9 Nm (79 lb in)
2	Rear Electrical Center Procedure  Disconnect the electrical connectors. Remove the rear electrical center. NOTE: When replacing, transfer fuses and relays.
