Headlamp Leveling Rear Suspension Height Sensor Replacement

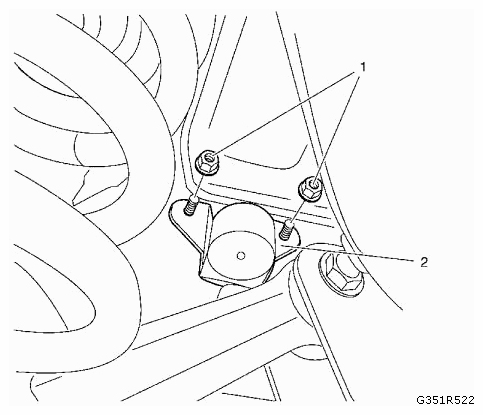

Fig 1: Identifying Headlamp Leveling Rear Suspension Height Sensor And Fasteners

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
1	Headlamp Leveling Rear Suspension Height Sensor Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten  5 Nm (44 lb in)
2	Headlamp Leveling Rear Suspension Height Sensor Procedure  Disconnect the electrical connector. Set up and program the headlamp control module. Refer to CONTROL MODULE REFERENCES .
