Headlamp Bulb Replacement (Low Beam)

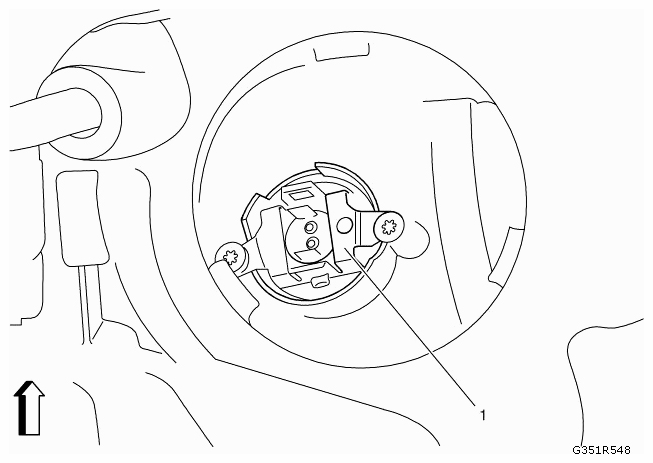

Fig 1: Identifying Headlamp Bulb (Low Beam)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the headlamp bulb - low beam dust cover.
1	Headlamp Bulb - Low Beam Refer to HALOGEN BULB WARNING . Procedure  Rotate the retainer counterclockwise in order to remove. Remove the bulb from the lamp socket.
