Headlamp Bulb Replacement (High Beam)

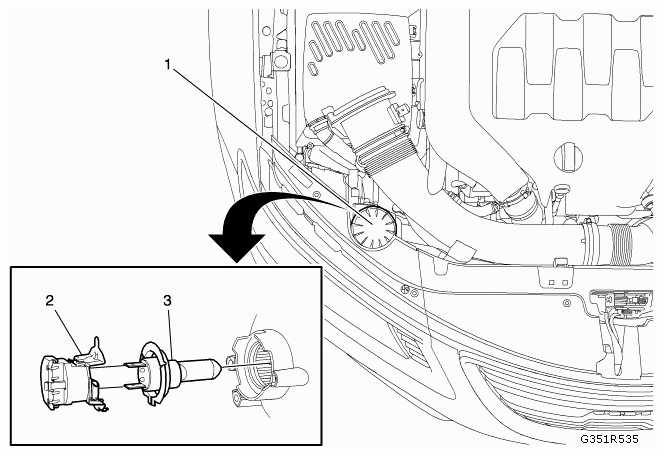

Fig 1: Identifying Headlamp Bulb (High Beam)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	High Beam Dust Cover
2	Bulb Socket Retainer Procedure  Rotate the bulb socket retainer a quarter turn counter-clockwise to release the assembly.
3	Headlamp Bulb WARNING: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying glass fragments. To help avoid personal injury: Turn off the lamp switch and allow the bulb to cool before changing the bulb. Leave the lamp switch OFF until the bulb change is complete. Always wear eye protection when changing a halogen bulb. Handle the bulb only by its base. Avoid touching the glass. Keep dirt and moisture off the bulb. Properly dispose of the used bulb. Keep halogen bulbs out of the reach of children. Procedure  Disconnect the electrical connector from the headlamp bulb socket.
