Starter Replacement (LHU/A20NFT)

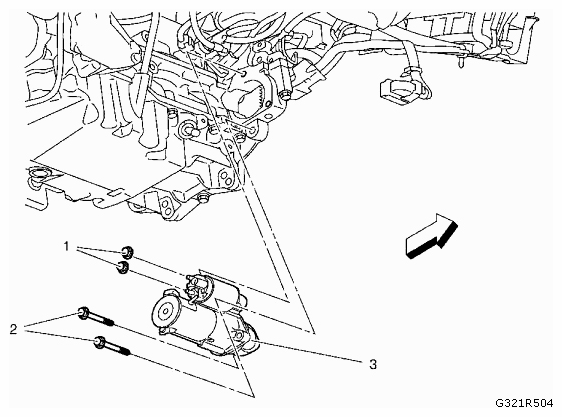

Fig 1: Identifying Starter Motor And Battery Cable Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
1	Battery Cable Fastener (Qty: 2) Refer to FASTENER CAUTION . Tighten 13 Nm (115 lb in)
2	Starter Fastener (Qty: 2) Tighten 47 Nm (35 lb ft)
3	Starter motor Procedure Disconnect any electrical connectors.
