Battery tray, replace (LHU/LLU/LAU)

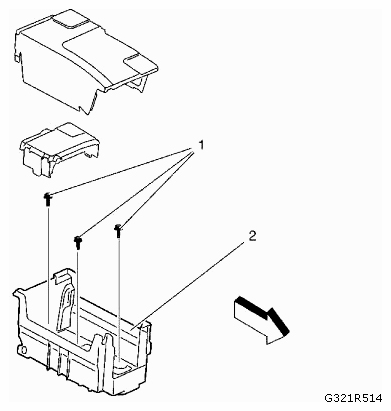

Fig 1: Identifying Battery Tray And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the battery. Refer to BATTERY REPLACEMENT .
1	Battery Tray Fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten 15 Nm (11 lb ft)
2	Battery Tray Procedure Transfer any parts as needed.
