Sunroof Air Deflector Cover Replacement

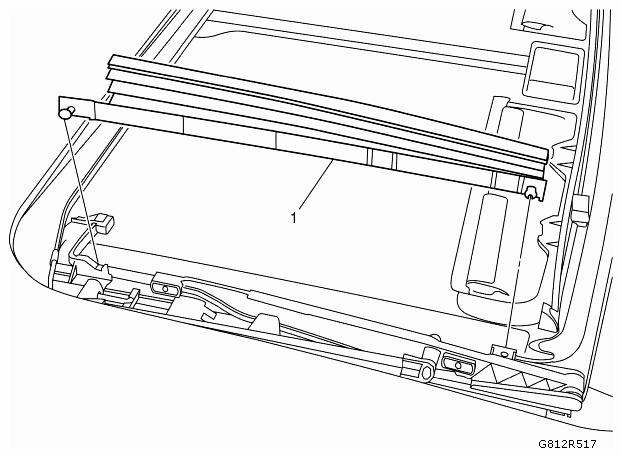

Fig 1: Identifying Sunroof Air Deflector Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Sunroof Air Deflector Cover Procedure  Lift the sunroof window. Move the sunshade to the maximum rear position. Clip out the sunroof air deflector cover in front. Clip out the sunroof air deflector cover in rear.
