Driver or Passenger Seat Replacement (8-Way-Power)

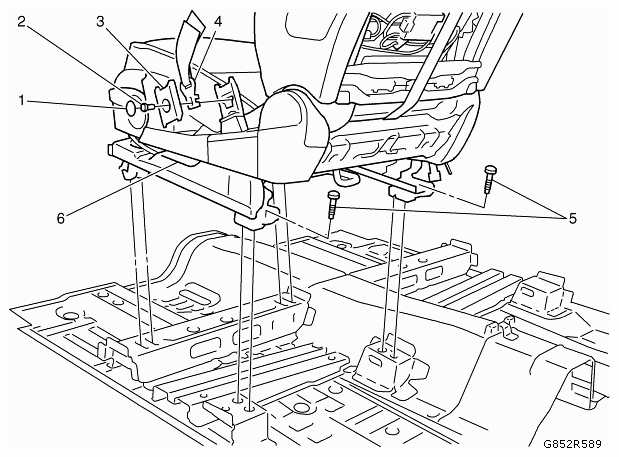

Fig 1: Identifying Driver/Passenger Seat Components
G09437996Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Refer to SIR WARNING .
Preliminary Procedure
  1. SIR disabling and enabling.
  2. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
1 Cap
2 Driver or Passenger Seat Belt Fastener
Refer to FASTENER CAUTION .
Tighten
5 Nm (44 lb in)
3 Seat Belt Tensioner Cover
4 Driver or Passenger Seat Belt
5 Driver or Passenger Seat Fastener (Qty: 2)
Procedure
  1. Move front seat high adjuster in middle position.
  2. Disconnect battery.
  3. Seat belt release at seat belt tensioner.
  4. Disconnect the central wiring harness connector at bottom.
  5. Unscrew both fastener at the rail guide.
  6. Remove the front seat out of vehicle.

Tighten
20 Nm (15 lb ft)
6 Driver or Passenger Seat
