Windshield Side Garnish Molding Replacement

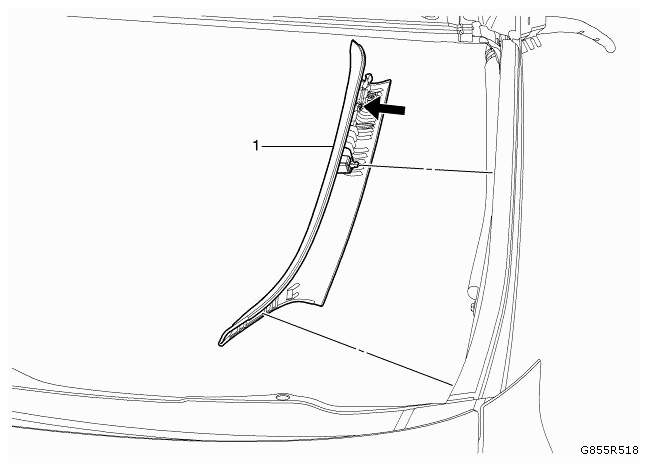

Fig 1: Locating Windshield Side Garnish Molding
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout
Component Name
1
Windshield Side Garnish Molding
Procedure
Start removing in the top end. There is a strap attached to the A-pillar that needs to be removed by releasing the clip from the molding.
