Sunshade Support Replacement

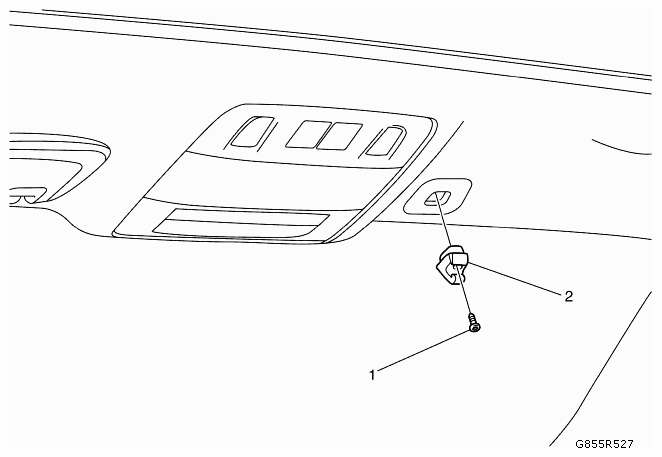

Fig 1: Identifying Sunshade Support And Fastener
G09435852Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Sunshade Support Fastener
Refer to FASTENER CAUTION .
Procedure
Pull cover downward to access fastener.
2 Sunshade Support
