Sunshade Replacement

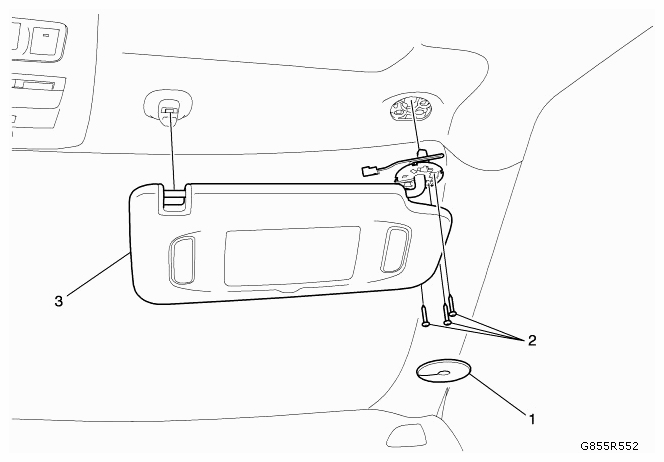

Fig 1: Identifying Sunshade Assembly, Sunshade Support Fastener Cover And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Lower the front of the headlining trim panel to access the sunshade electrical connector, if necessary.
1	Sunshade Support Fastener Cover
2	Sunshade Fastener (Qty: 3) Refer to FASTENER CAUTION .
3	Sunshade Assembly Procedure Disconnect the electrical connector. Remove the sunshade anchor from the roof by unsnapping, if needed.
