Roof Rail Front Assist Handle Replacement

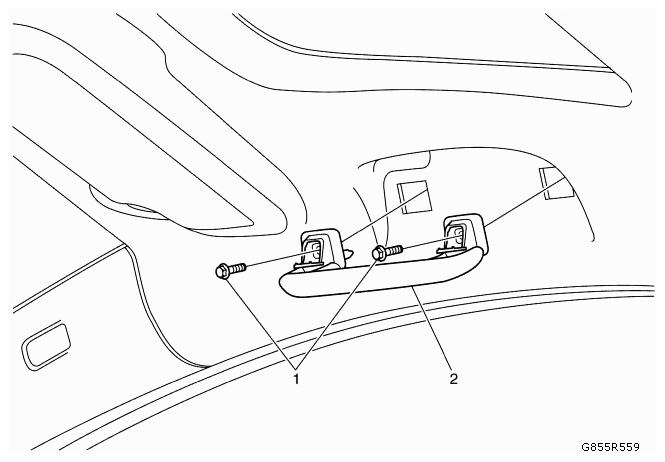

Fig 1: Identifying Roof Rail Front Assist Handle And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Roof Rail Front Assist Handle Fastener (Qty: 2) Refer to FASTENER CAUTION . Procedure  Fold the assist handle downward and hold. Use a small flat-bladed tool to release the cover to access the fastener. Tightening Torque  6 Nm (53 lb in)
2	Roof Rail Front Assist Handle
