Roof Console Replacement (Frame)

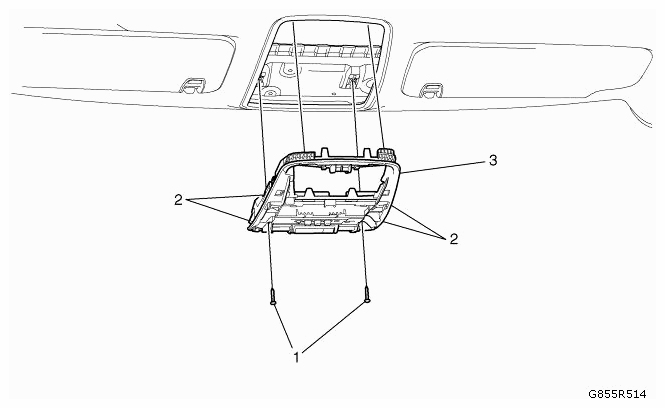

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the roof console reading lamp. Refer to DOME AND READING LAMP REPLACEMENT . |
|
| 1 | Roof Console Fastener (Qty: 2) Refer to FASTENER CAUTION . |
| 2 | Roof Console Retainer (Qty: 4)
NOTE:
Carefully use a flat-bladed tool to release the retainer from the roof console frame to the headliner.
|
| 3 | Roof Console Frame |
