Roof Console Replacement (Assembly)

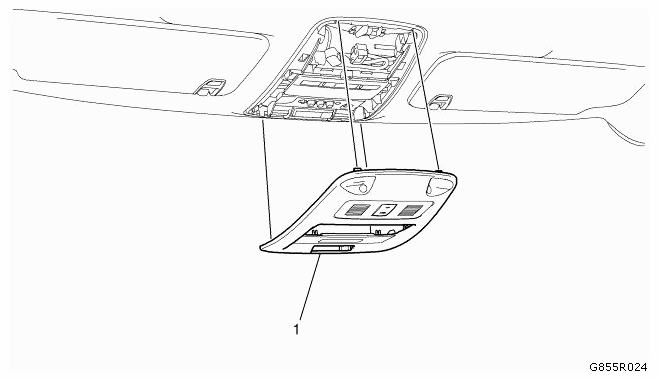

Fig 1: Identifying Roof Console Assembly
G09435838Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Roof Console Assembly
NOTE: Carefully use a flat-bladed tool to release the retainer from the roof console to the roof console frame.
