Instrument Panel Lower Trim Panel Insulator Replacement - Driver Side

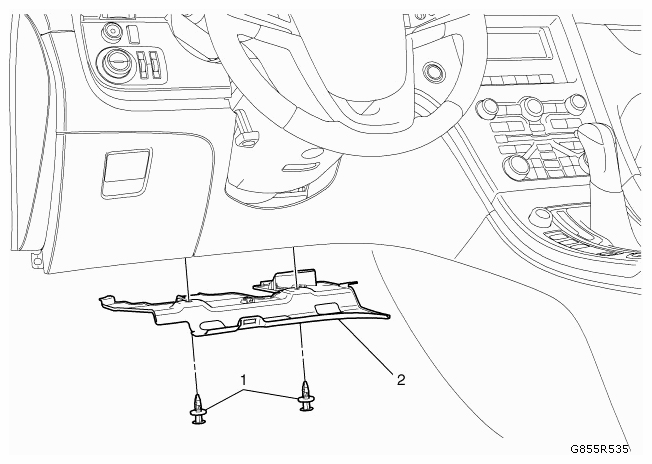

Fig 1: Identifying Instrument Panel Lower Trim Panel Insulator And Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Instrument Panel Lower Trim Panel Insulator Retainer (Qty: 2) Procedure  Use BO-569-A  lifter to release the retainer clips securing the insulator to the instrument panel. Remove the electrical connections. Special Tools  BO-569-A  Plug Lifter For equivalent regional tools, refer to SPECIAL TOOLS .
2	Instrument Panel Lower Trim Panel Insulator
