Cargo Partition Track Replacement

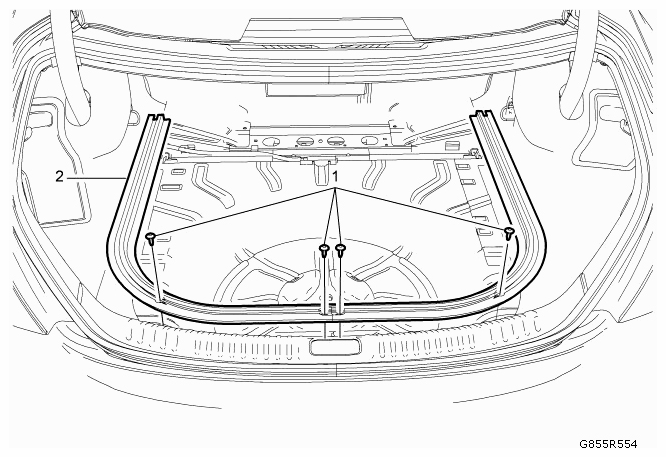

Fig 1: Identifying Cargo Partition Track And Fastener
G09435847Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the rear compartment carpet.
1 Cargo Partition Track Fastener (Qty:4)
Refer to FASTENER CAUTION .
Tighten
10 Nm (89 lb in)
2 Cargo Partition Track
