Rear Bumper Fascia Reflector Replacement

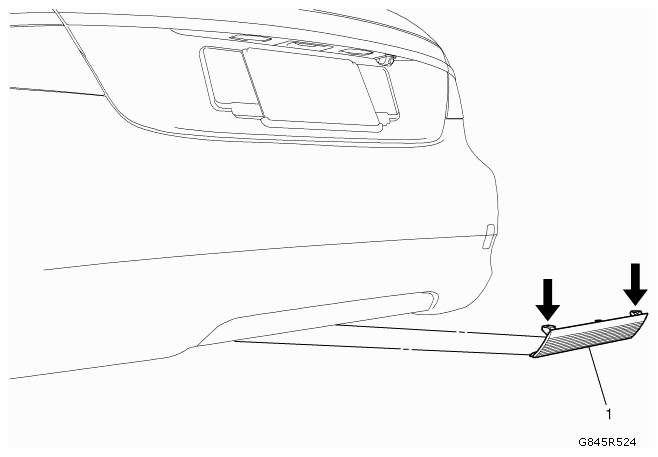

Fig 1: Locating Rear Bumper Fascia Reflector
G09435712Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Rear Bumper Fascia Reflector
Procedure
Reach in behind the fascia and press in the locking tabs to release.
