Fuel Tank Filler Door Lock Actuator Replacement

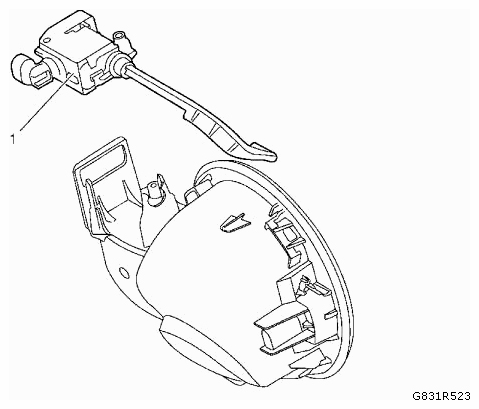

Fig 1: Identifying Fuel Tank Filler Door Lock Actuator

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the fuel tank filler pipe housing. Refer to FUEL TANK FILLER PIPE HOUSING REPLACEMENT .
1	Fuel Tank Filler Door Lock Actuator
