Radio Front Speaker Replacement

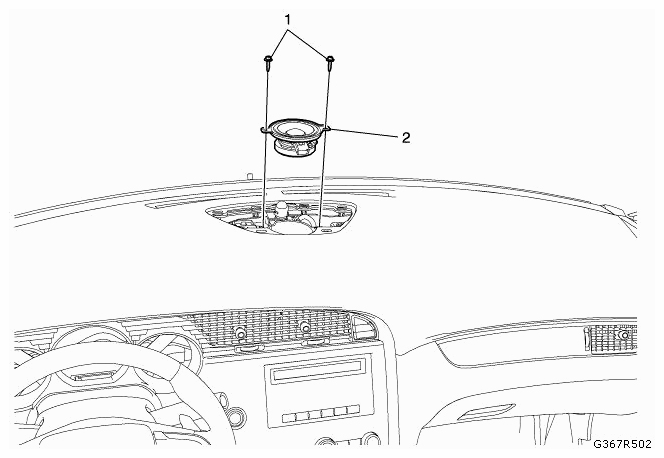

Fig 1: Identifying Radio Front Speaker And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the front speaker grille, use a flat-bladed plastic tool. Remove the electrical connector.
1	Radio Front Speaker Fastener (Qty: 2) See FASTENER CAUTION . Tighten 2.5 Nm (22 lb in)
2	Radio Front Speaker Procedure Disconnect the electrical connector.
