Radio Antenna Base Replacement

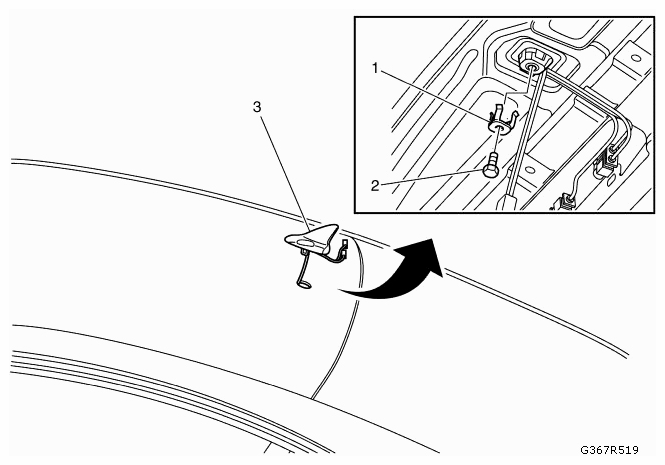

Fig 1: Identifying Radio Antenna Base And Retainer/Fastener
G09435311Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the headlining trim panel. Refer to HEADLINING TRIM PANEL REPLACEMENT (WITHOUT SUNROOF)HEADLINING TRIM PANEL REPLACEMENT (WITH SUNROOF) .
1 Radio Antenna Base Retainer
2 Radio Antenna Base Fastener
3 Radio Antenna Base
Procedure
  1. Disconnect the electrical connector.
  2. Use a new retainer.
