Mobile Telephone Microphone Replacement

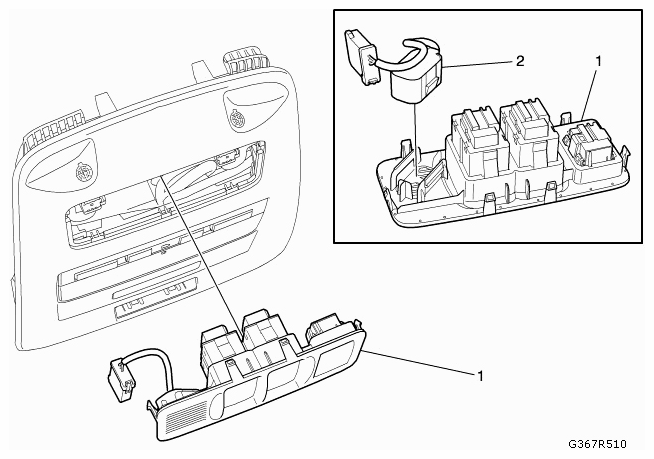

Fig 1: Identifying Sunroof Actuator Trim Cover And Mobile Telephone Microphone

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Sunroof Actuator Trim Cover Procedure  Remove the sunroof actuator trim cover. NOTE: Use a flat bladed tool to release the trim cover.
2	Mobile Telephone Microphone Procedure  Disconnect the electrical connector. Release the microphone out of the retainer. Make a functional check.
