Fuel Tank Components (LAU or LDK with F46)

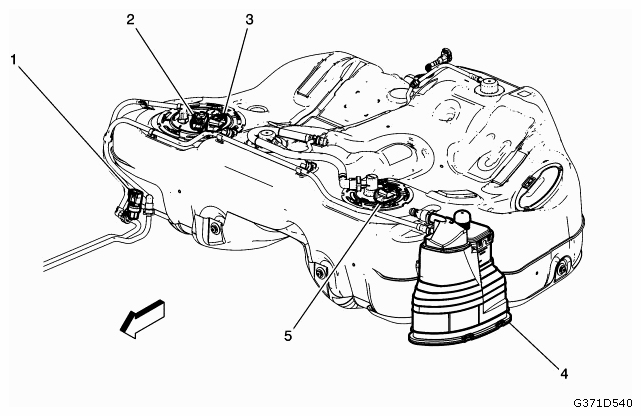

Fig 1: Identifying Fuel Tank Components (LAU, LDK With F46)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. B47 Fuel Pressure Sensor
2. B150 Fuel Tank pressure Sensor (NT7)
3. A7 Fuel Pump and Levevl Sensor Assembly
4. Q13 Evaporative Emission Vent Solenoid Valve (NT7)
5. B46B Fuel Level Sensor - Secondary (NT7)
