Position Lamps, High Beam and Low Beam Headlamps (TT4): Notes

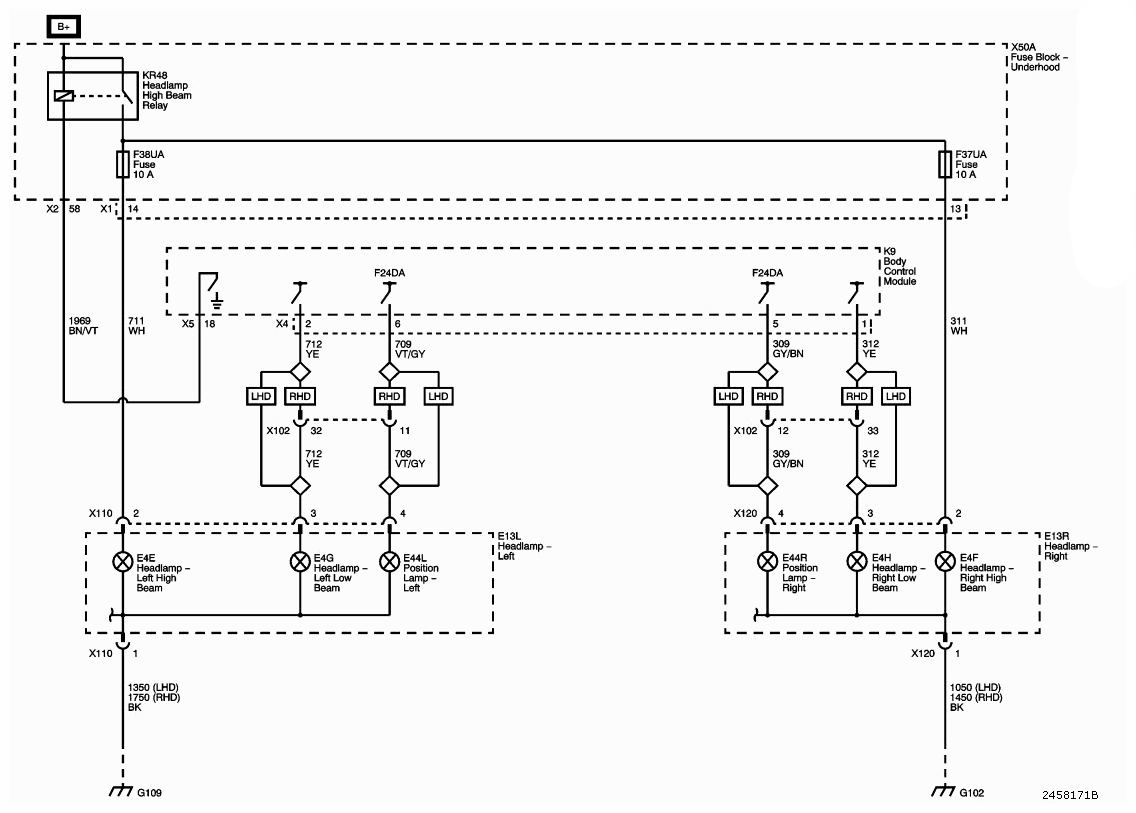

Fig 1: Position Lamps, High Beam And Low Beam Headlamps - Wiring Diagram (TT4)

G09435222

Courtesy of SAAB-SCANIA OF AMERICA, INC.
