Home >> Saab >> 2011 >> 9-5 Turbo6 >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting And Signaling Systems >> Wiring diagram >> Horn >> Notes

Lighting And Signaling Systems: Wiring diagram: Horn: Notes

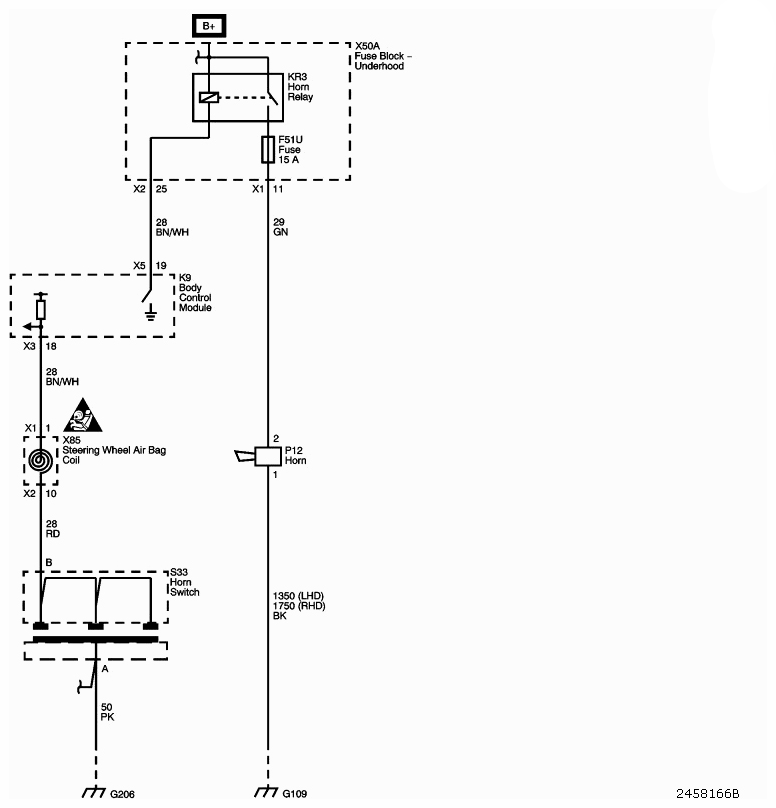

Fig 1: Horn - Wiring Diagram

G09435216

Courtesy of SAAB-SCANIA OF AMERICA, INC.
