Home >> Saab >> 2011 >> 9-5 Turbo6 >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting And Signaling Systems >> Wiring diagram >> High Intensity Discharge Headlamps (TT2 or TT6) >> Notes

High Intensity Discharge Headlamps (TT2 or TT6): Notes

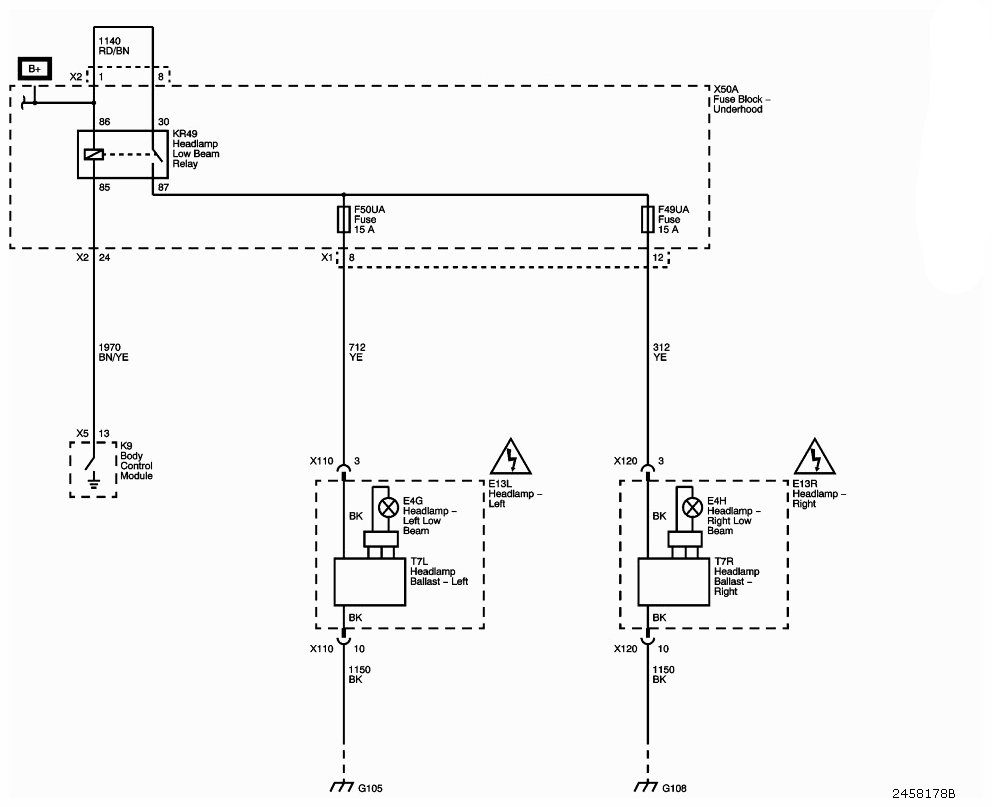

Fig 1: High Intensity Discharge Headlamps - Wiring Diagram (TT2 Or TT6)

G09435223

Courtesy of SAAB-SCANIA OF AMERICA, INC.
