Rear light fittings: Action

When replacing a rear light, please check if the old light have washers installed on the installation screws and if the plastic pegs and ribs are adjusted.

1. Does the old light have washers on the installation screws?

   No: go to step 2.

   Yes: Move the washers from the old light, to the new light

   Make sure that washers are installed in the same positions on old/new light.

2. Does the old lamp have adjusted plastic pegs and ribs?

   No: No more action needed, install the rear light

   Yes: Adjust the plastic pegs and ribs on the new light and install the rear light

   Make sure that the plastic pegs and ribs are adjusted in the same positions on old/new light

Rear light configuration

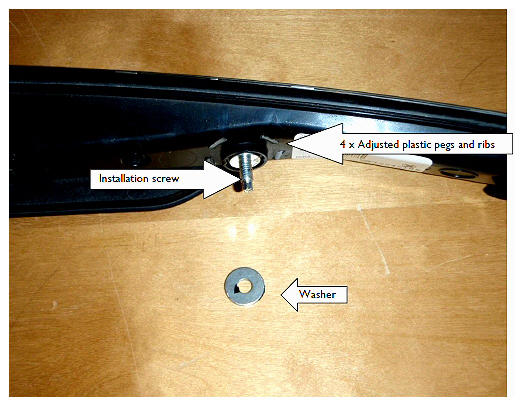

Fig 1: Locating Rear Light Adjust Plastic Pegs/Ribs, Screw And Washer

Courtesy of SAAB-SCANIA OF AMERICA, INC.
