Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor Replacement

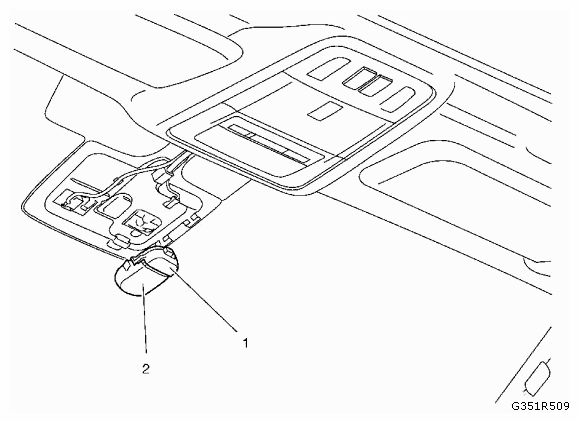

Fig 1: Identifying Windshield Outside Moisture And Headlamp Automatic Control Ambient Light Sensor Retainer
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the inside rearview mirror mount plate cover. Refer to INSIDE REARVIEW MIRROR MOUNT PLATE COVER REPLACEMENT |
|
| 1 | Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor Retainer
NOTE:
Use a small flat-bladed tool to release the locking retainer on the windshield outside moisture and headlamp automatic control ambient light sensor and push the cap upwards.
|
| 2 | Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor |
